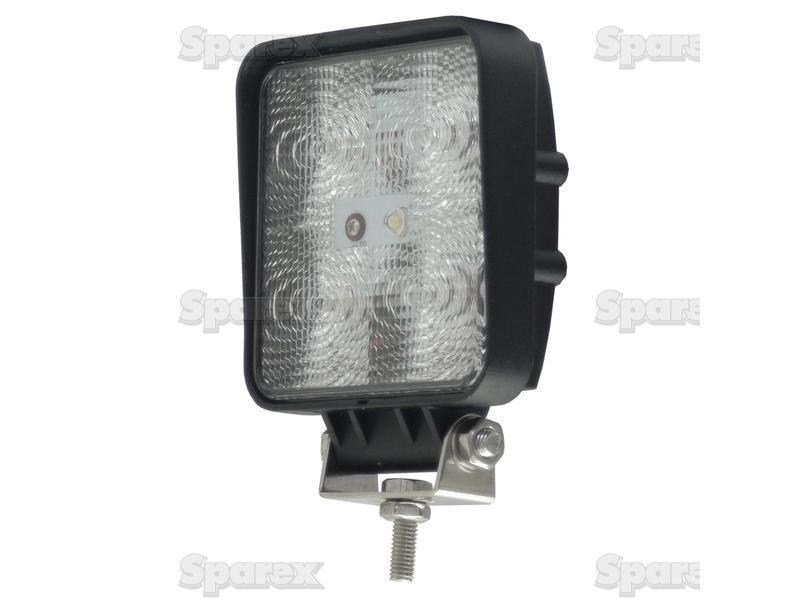

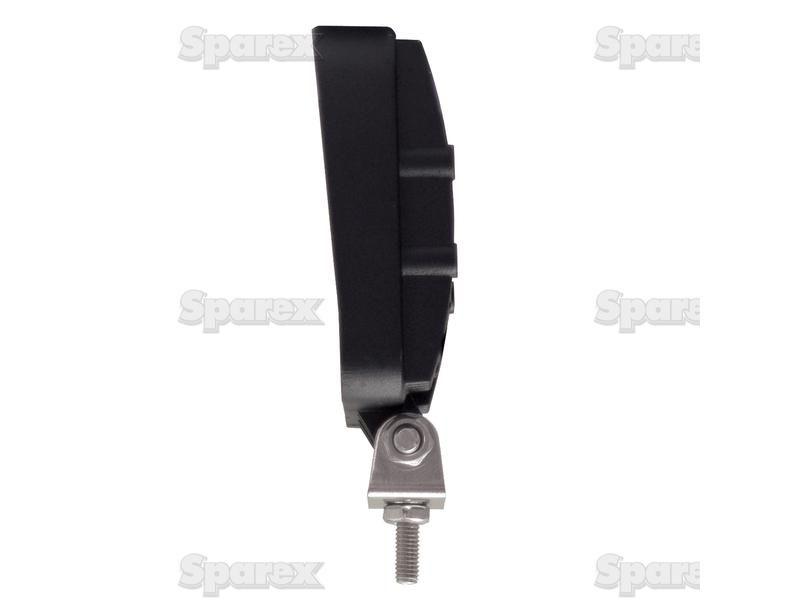

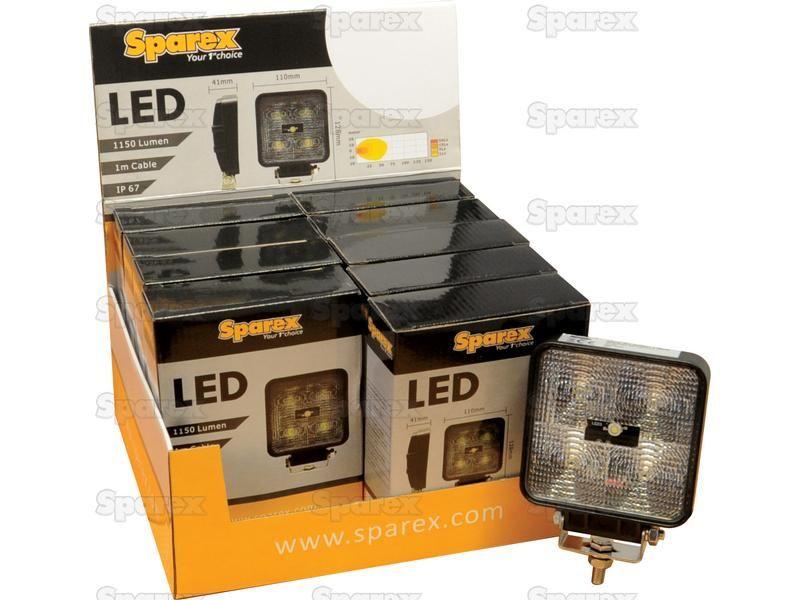

LED Work Light - aluminium case, 1150 lumen | 12/24 Volts, LEDs 5x3w, IP67
Part Number: S.28542Categories: Electrical Accessories
Part Number: S.28542
Grade: Replacement
Part Details
LED Work Light - aluminium case, 1150 lumen | 12/24 Volts, LEDs 5x3w, IP67 ECE Rating: Reg 10CE Approved: YesIP Rating: IP67Connection Type: For Male or Female Insulated Terminal
Technical Information
| Beam Angle | 100° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1120 |
| Lumens Raw | 1800 |

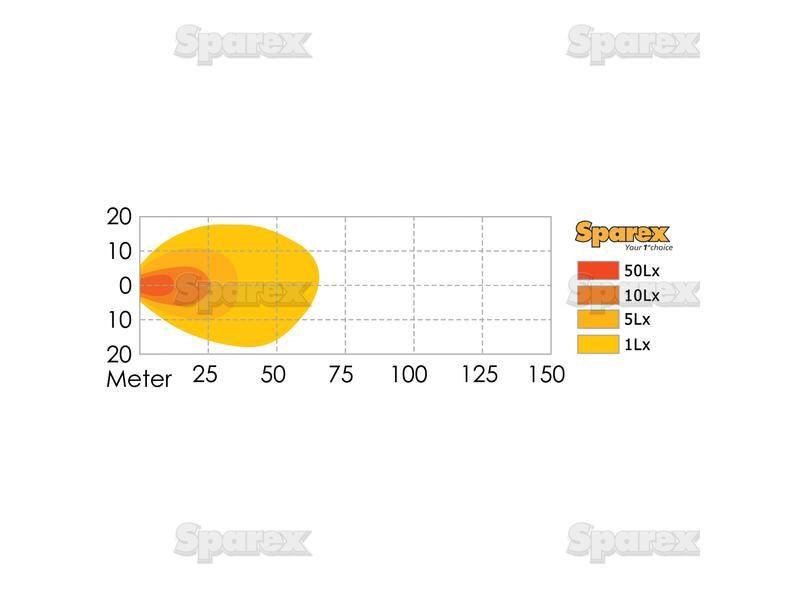

| Lux Value | 1591 |
| Notes | Dimensions without bracket |
| Number of LEDs | 6 LEDs |
| On Off Switch | No |

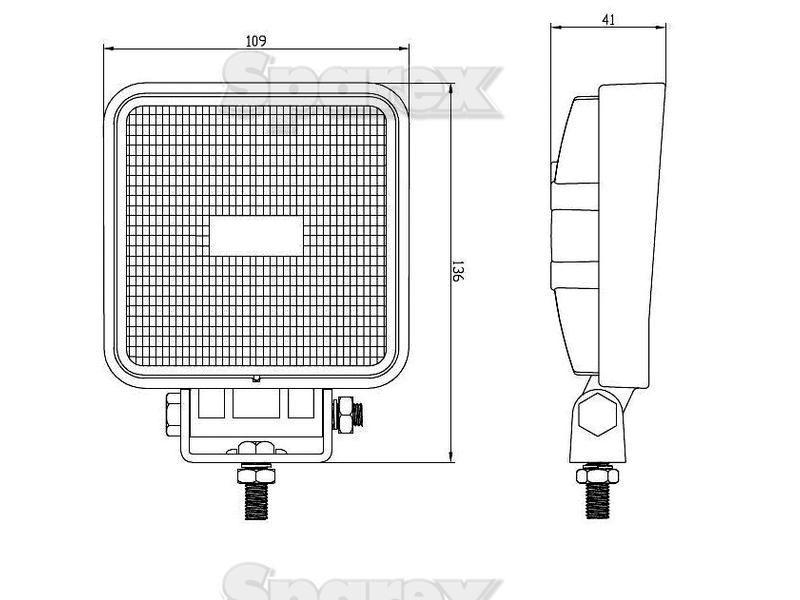

| Overall height mm | 136 |
| Overall length mm | 107 |
| Overall width mm | 41 |
| Power Consumption @ 12V | 1.25Amps |
| Power Consumption @ 24V | 0.63Amps |
| Related Products | 112530, 112533, 29346, 119256 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539213000 |
| Volts | 10-30V |
| Watts | 15W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
