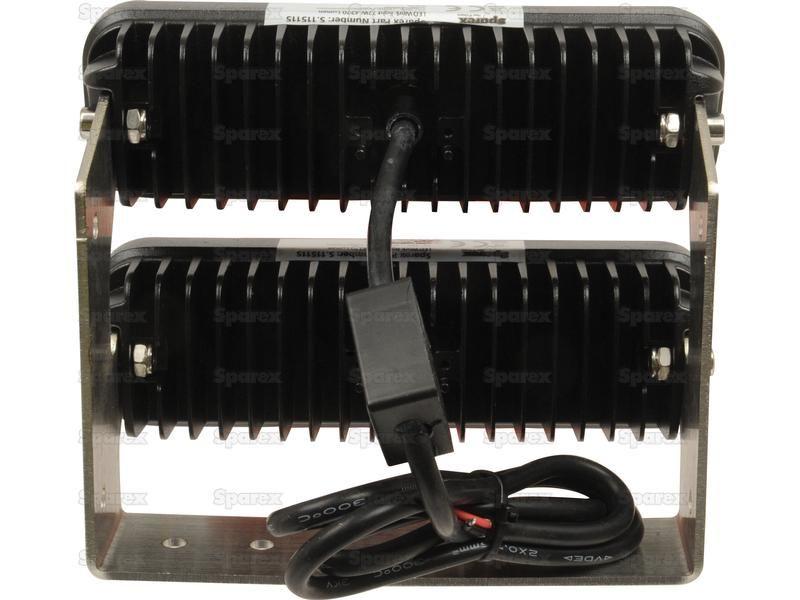

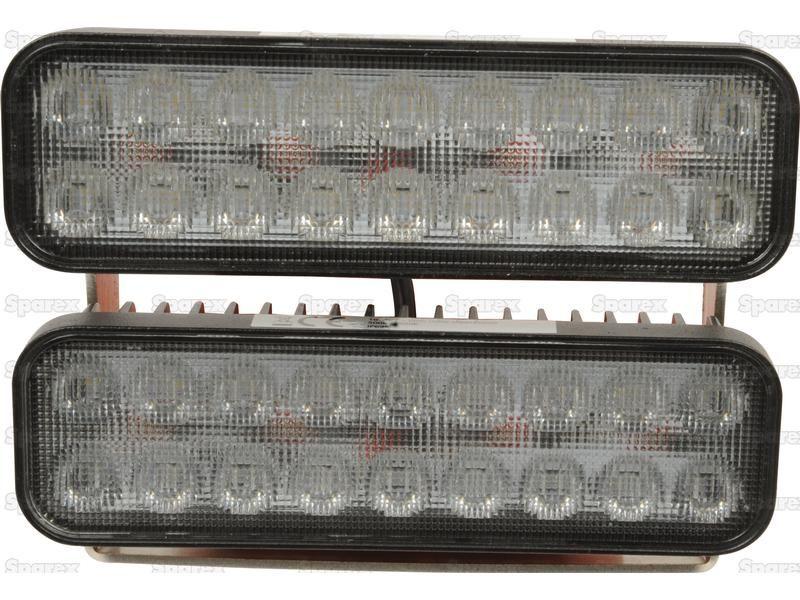

LED Work Light (Adjustable), Interference: Class 1, 4270 Lumens, 10-30V
Part Number: S.115115Categories: Electrical Accessories
Part Number: S.115115
Grade: Replacement
Part Details
LED Work Light (Adjustable), Interference: Class 1, 4270 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP67Connection Type: Male & Female Terminal
Technical Information
| Beam Angle | 80° |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | Male & Female Terminal |
| ECE Rating | Reg 10 |
| Fixing | Bolt on |
| Function | Flood Beam |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 1 |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Polycarbonate |
| Light source | LED |
| Lumens Effective | 2990 |
| Lumens Raw | 4270 |
| Lux Value | 4270 |
| Number of LEDs | 30 x LEDs |

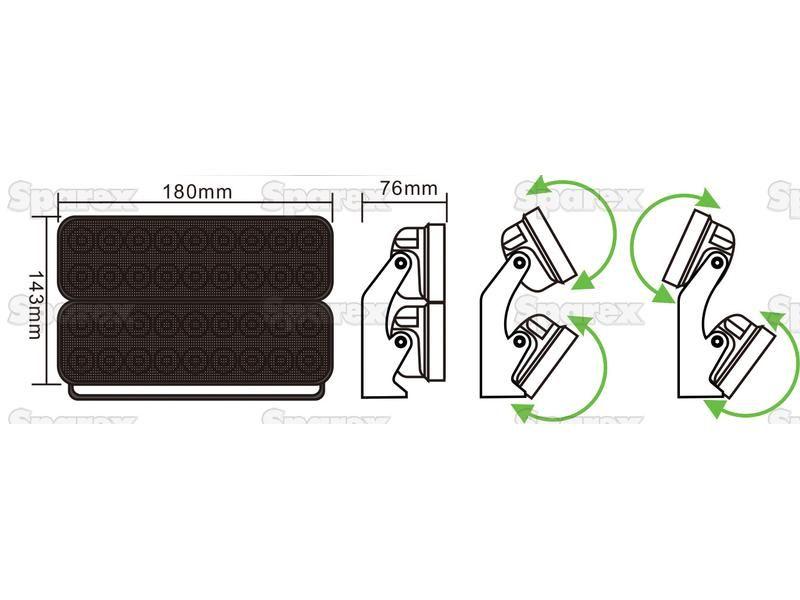

| Overall height mm | 143 |
| Overall length mm | 180 |
| Overall width mm | 76 |
| Power Consumption @ 12V | 4.0Amps |
| Power Consumption @ 24V | 2.04Amps |
| Related Products | 112530, 119256, 119258 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 48W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
