LED Slimline Hazard Light, Interference: Class 3, Function: Single Flash, Double Flash, 12-24V
Part Number: S.152731Categories: Electrical Accessories
Part Number: S.152731
Grade: Replacement
Part Details
LED Slimline Hazard Light, Interference: Class 3, Function: Single Flash, Double Flash, 12-24V ECE Rating: Reg 65, Reg 15CE Approved: YesIP Rating: IP65
Technical Information
| Brand | Sparex |
| Cable length mm | 450 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 65, Reg 15 |
| Fixing | Screw Base |
| Function | Single Flash, Double Flash |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP65 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light Colour | Amber |
| Light source | LED |
| Lumens Effective | 450 |
| Lumens Raw | 900 |
| Lux Value | 500 |
| Number of LEDs | 6 LEDs |

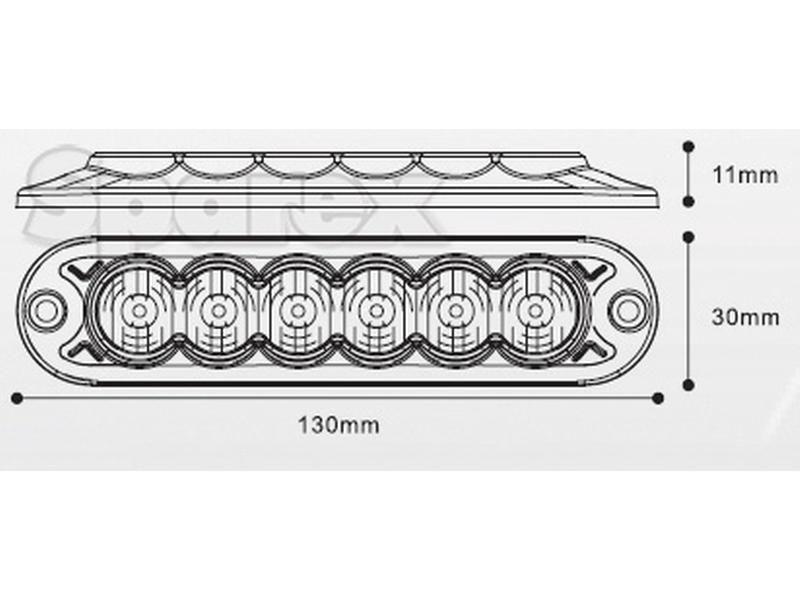

| Overall height mm | 11 |
| Overall length mm | 130 |
| Overall width mm | 30 |
| Power Consumption @ 12V | 0.67Amps |
| Power Consumption @ 24V | 0.35Amps |
| Profile | Low |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8512200030 |
| Volts | 12-24V |
| Watts | 8W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -20°C to 50°C |
