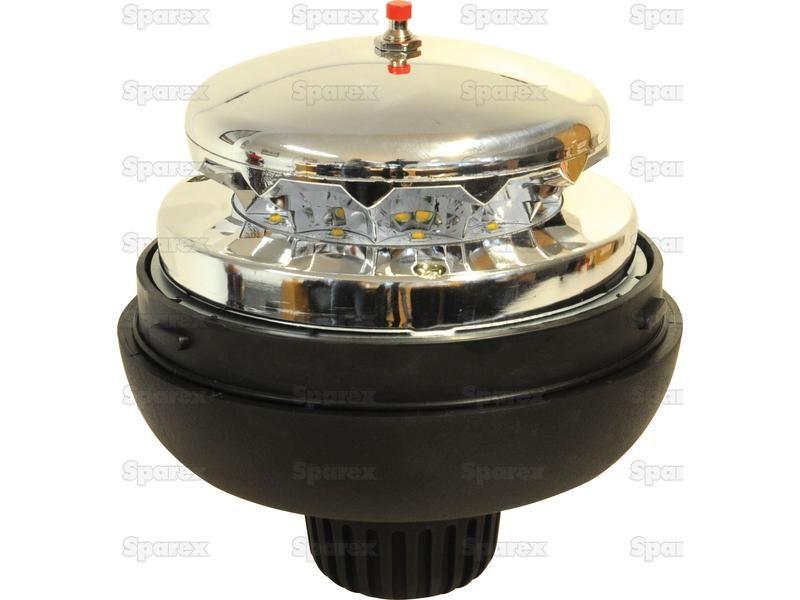

LED Rotating Beacon (Amber), Interference: Class 3, Magnetic, 12-24V
Part Number: S.114414Categories: Electrical Accessories
Part Number: S.114414
Grade: Replacement
Part Details
LED Rotating Beacon (Amber), Interference: Class 3, Magnetic, 12-24V ECE Rating: Reg 65, Reg 10CE Approved: YesIP Rating: IP65Profile: LowFunction: Single Flash, Double Flash, Rotating
Technical Information
| Ø mm | 128 |
| Brand | Sparex |
| Cable length mm | 3800 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 65, Reg 10 |
| Fixing | Magnetic |
| Function | Single Flash, Double Flash, Rotating |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP65 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1200 |
| Lumens Raw | 2400 |
| Lux Value | 480 |
| Number of LEDs | 12 LEDs |
| Overall height mm | 130 |
| Overall length mm | 128 |
| Overall width mm | 128 |
| Power Consumption @ 12V | 1.75Amps |
| Power Consumption @ 24V | 1.79Amps |
| Profile | Low |
| Related Products | 119257, 119260, 150443 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Speed | 125+/5 rpm |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 21-43W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
