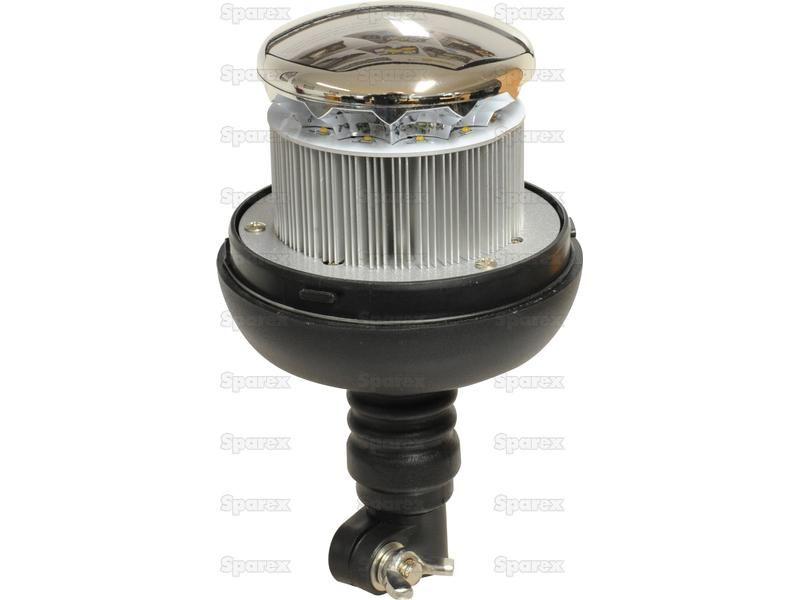

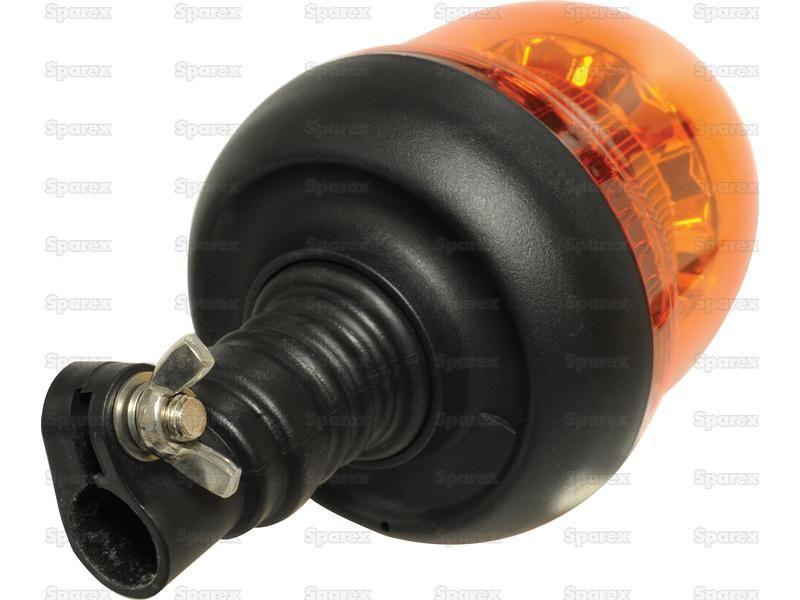

LED Rotating Beacon (Amber), Interference: Class 3, Flexible Pin, 12-24V for John Deere 6900 (6000 Series)
Part Number: S.119483Categories: Electrical Accessories
Part Number: S.119483
Grade: Replacement
Part Details
LED Rotating Beacon (Amber), Interference: Class 3, Flexible Pin, 12-24V ECE Rating: Reg 65, Reg 10CE Approved: YesIP Rating: IP65Profile: StandardFunction: Rotating
Technical Information
| Ø mm | 128 |
| Brand | Sparex |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 65, Reg 10 |
| Fixing | Flexible Pin |
| Function | Rotating |
| Housing Material | Rubber |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP65 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1200 |
| Lumens Raw | 2400 |
| Lux Value | 480 |
| Number of LEDs | 12 LEDs |
| Overall height mm | 140 |
| Overall length mm | 128 |
| Overall width mm | 128 |
| Power Consumption @ 12V | 1.0 Amp |
| Power Consumption @ 24V | 0.5Amps |
| Profile | Standard |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 12W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
