LED Rechargeable Worklight, (Magnetic), Interference: Class 1, 1100 Lumens, 10-30V
Part Number: S.143230Categories: Electrical Accessories
Part Number: S.143230
Grade: Replacement
Part Details
LED Rechargeable Worklight, (Magnetic), Interference: Class 1, 1100 Lumens, 10-30V ECE Rating: Reg 6, Reg 7, Reg 10CE Approved: YesIP Rating: IP65Connection Type: Deutsch Connector
Technical Information
| Battery type | 3.7V x 2 pcs. |

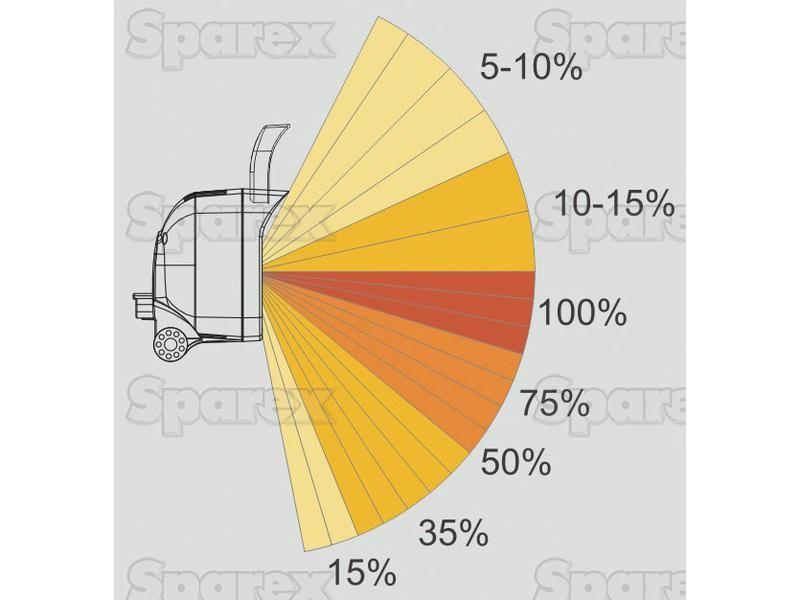

| Beam Angle | 140° |
| Brand | Sparex |
| Cable length mm | 3000 |
| CE Approved | Yes |
| Charging time | 4 Hours |

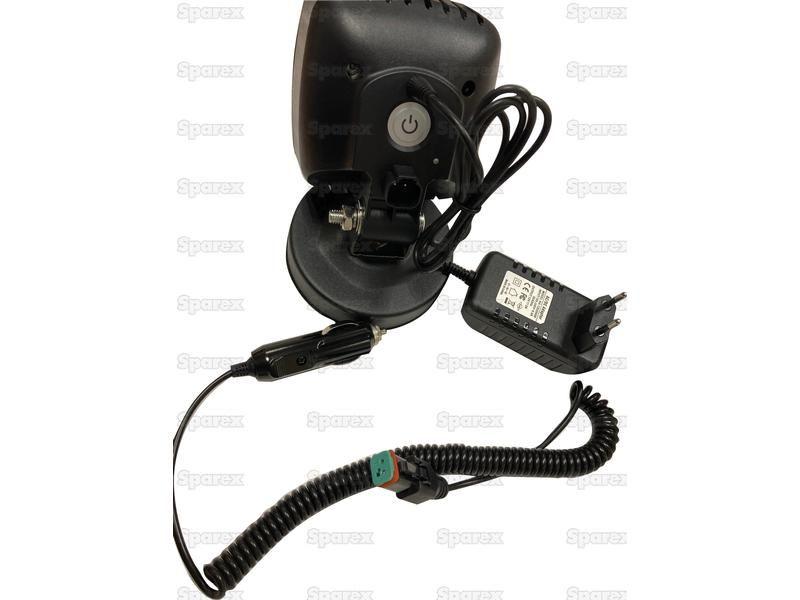

| Connection Type | Deutsch Connector |
| ECE Rating | Reg 6, Reg 7, Reg 10 |
| Fixing | Magnetic |
| Function | Flood Beam |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Class 1 |
| IP Rating | IP65 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 400 @ 100%, 230 @ 50% |
| Lumens Raw | 1100 |

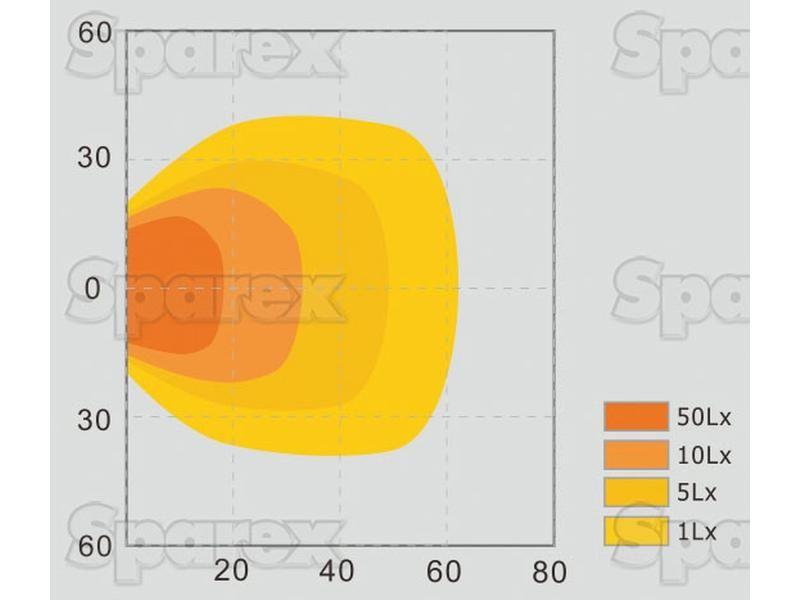

| Lux Value | 4500 |
| Number of LEDs | 30 LEDs |
| On Off Switch | Yes |
| Overall height mm | 166 |
| Overall length mm | 106 |
| Overall width mm | 108 |
| Power Consumption @ 12V | 4.17Amps |
| Power Consumption @ 24V | 2.08Amps |
| RoHS Approved | Yes |
| Run time | 4 Hours 100% / 8 Hours 50% |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 50W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
