LED Rechargeable Beacon (Amber), Interference: Class 5, Magnetic, 12-24V
Part Number: S.162444Categories: Electrical Accessories
Part Number: S.162444
Grade: Replacement
Part Details

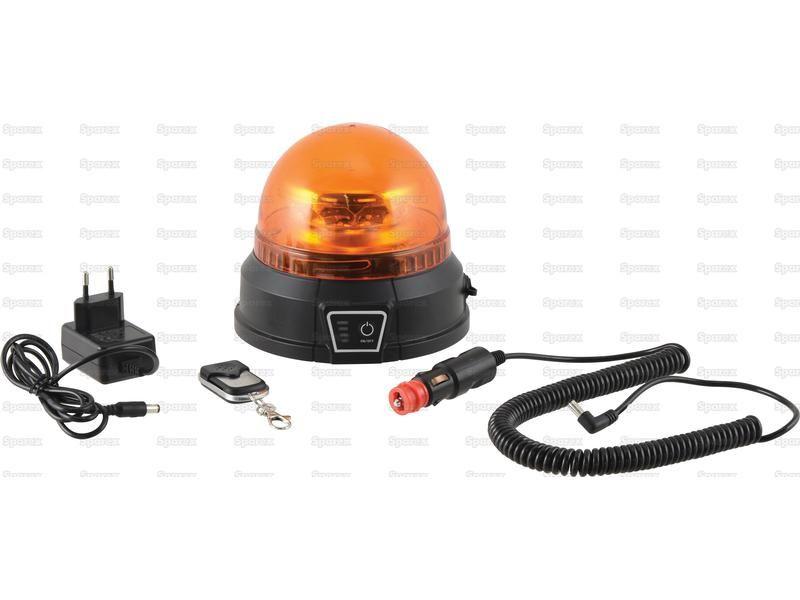

LED Rechargeable Beacon (Amber), Interference: Class 5, Magnetic, 12-24V ECE Rating: Reg 65, Reg 10CE Approved: YesIP Rating: IP65Profile: LowFunction: 3 functions: Rotating, Double Flashes, Single FlashBuilt in 4 level battery indicator (100%, 75%, 50%, 25%)Remote control fob to switch On/Off and change flash pattern230V and 12V charger included as standard
Technical Information
| Ø mm | 132 |
| Brand | Sparex |
| CE Approved | Yes |
| Connection Type | 12V Port |
| ECE Rating | Reg 65, Reg 10 |
| Fixing | Magnetic |
| Function | 3 functions: Rotating, Double Flashes, Single Flash |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP65 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 600 |
| Lumens Raw | 1200 |
| Lux Value | 240 |
| Number of LEDs | 12 LEDs |
| Overall height mm | 143 |
| Overall length mm | 132 |
| Overall width mm | 132 |
| Power Consumption @ 12V | 1.25Amps |
| Power Consumption @ 24V | 0.6Amps |
| Profile | Low |
| RoHS Approved | Yes |
| Run time | 12 Hours |
| SAE Approved | No |
| Shape | Round |
| Speed | 125+/-10 rpm Double Flash |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 9-15W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
