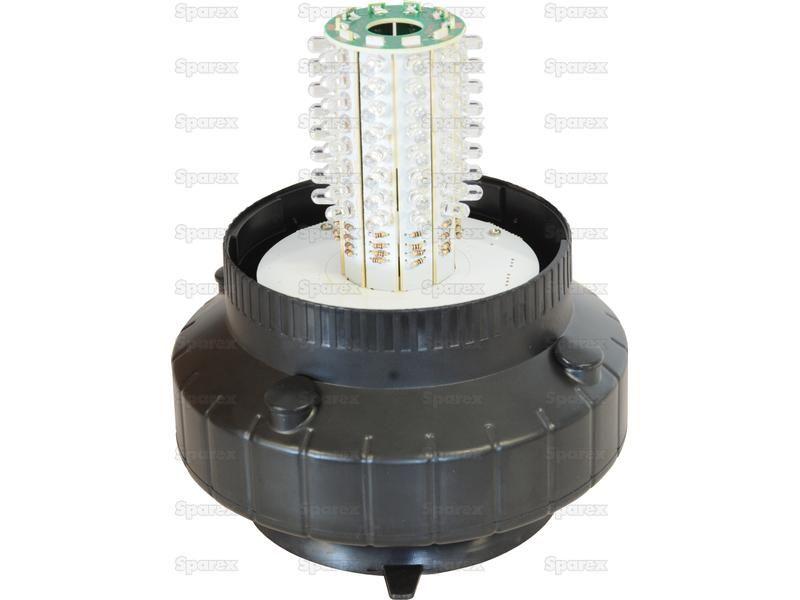

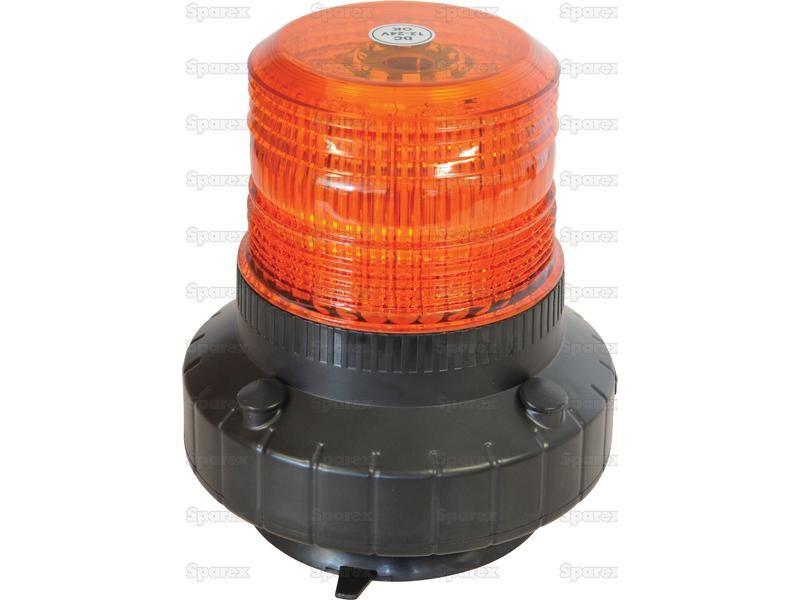

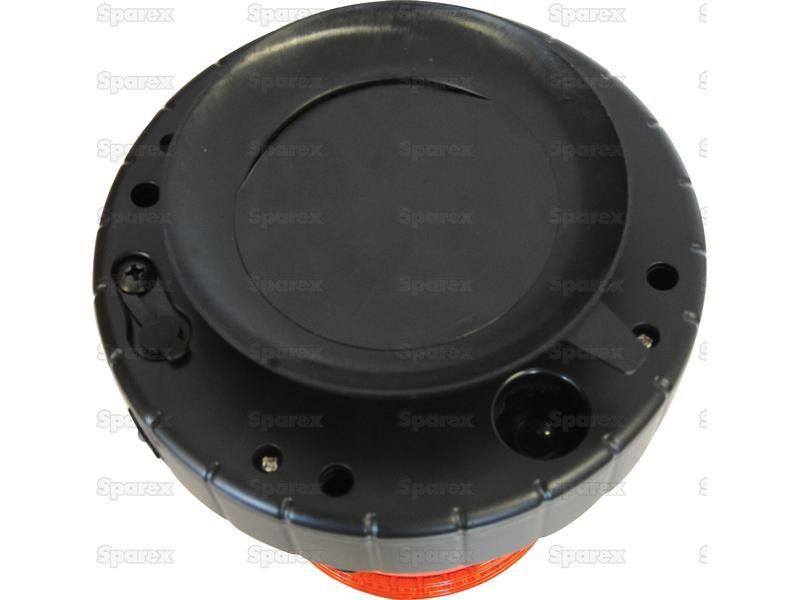

LED Rechargeable Beacon (Amber), Interference: Class 3, Magnetic, 12-24V
Part Number: S.23830Categories: Electrical Accessories
Part Number: S.23830
Grade: Replacement
Part Details
LED Rechargeable Beacon (Amber), Interference: Class 3, Magnetic, 12-24V ECE Rating: Reg 10CE Approved: YesIP Rating: IP55Profile: StandardFunction: 4 Flash ModeApproximately 40 hours run time on a single charge
Technical Information
| Ø mm | 145 |
| Brand | Sparex |
| CE Approved | Yes |
| Charging time | 8-10 Hours |
| Connection Type | 12V Port |
| ECE Rating | Reg 10 |
| Fixing | Magnetic |
| Function | 4 Flash Mode |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP55 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 250 |
| Lumens Raw | 150 |
| Lux Value | 250 |
| Number of LEDs | 80 LEDs |
| Overall height mm | 150 |
| Overall length mm | 145 |
| Overall width mm | 145 |
| Power Consumption @ 12V | 0.1Amps |
| Power Consumption @ 24V | 0.12Amps |
| Profile | Standard |
| Replacement Dome | S.23832 |
| RoHS Approved | Yes |
| Run time | up to 10 Hours |
| SAE Approved | No |
| Shape | Round |
| Speed | Six Flash: 428+/-4 rpm |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 100-200W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
