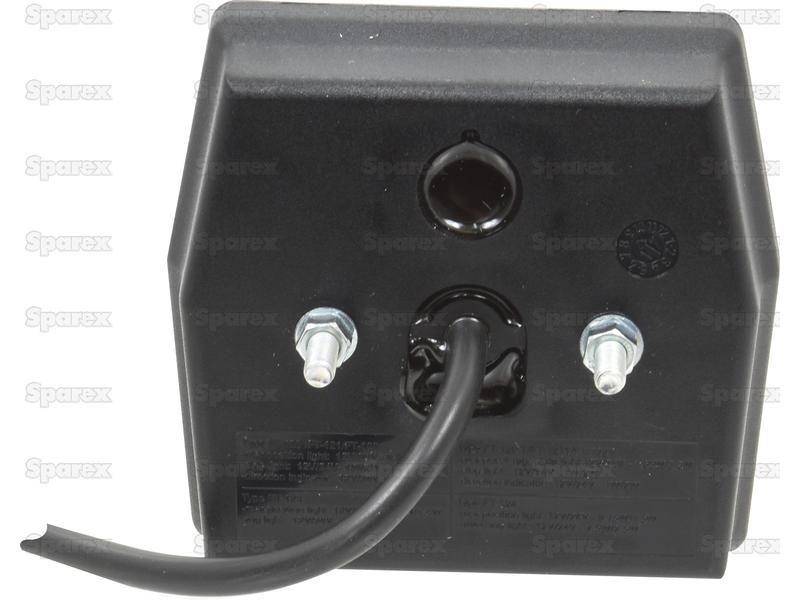

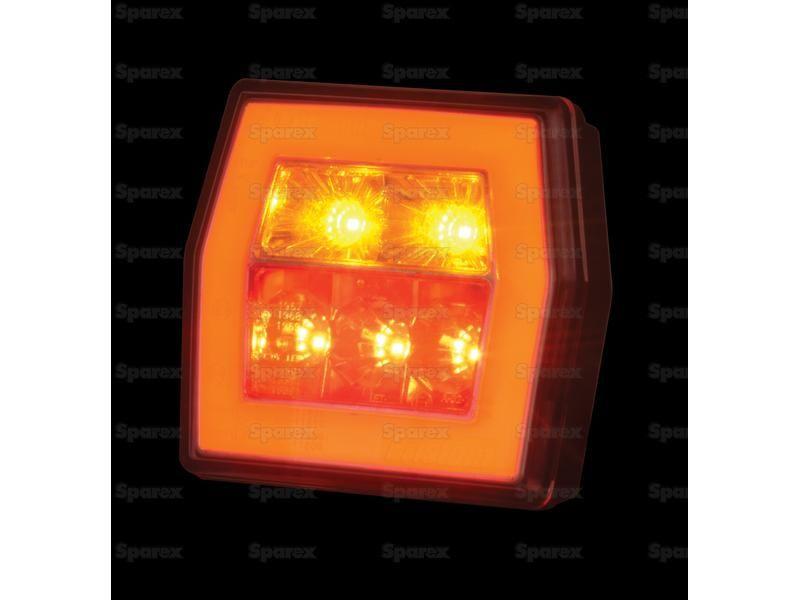

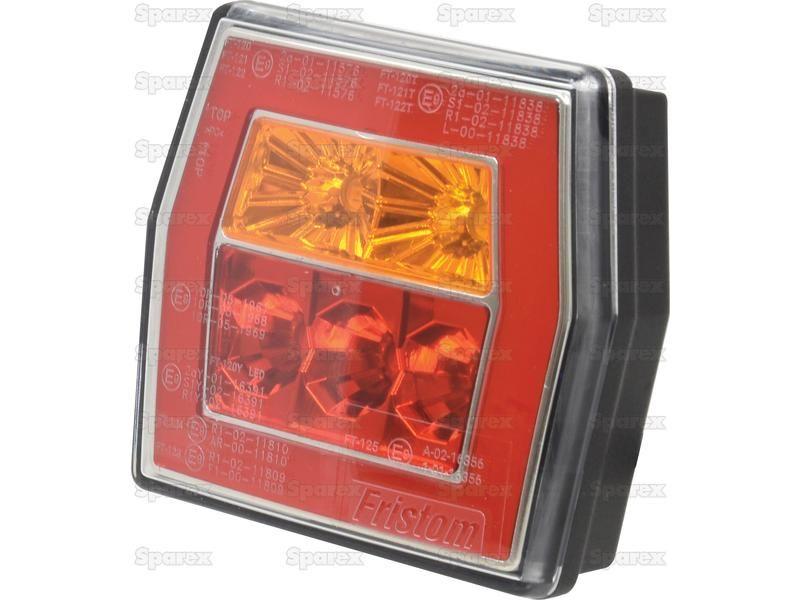

LED Rear Combination Light, Function: 3, Brake / Tail / Indicator, RH & LH, 12-36V
Part Number: S.143048Categories: Electrical Accessories
Part Number: S.143048
Grade: Replacement
Part Details
LED Rear Combination Light, Function: 3, Brake / Tail / Indicator, RH & LH, 12-36V Fixing: E Approved: Cable length:2000mm
Technical Information
| Brand | Sparex |
| Cable length mm | 2000 |
| CE Approved | No |
| Connection Type | None |
| ECE Rating | No |
| Function | 3, Brake / Tail / Indicator |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP68 |
| Lens Colour | Red / Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Number of LEDs | 21 LEDs |
| Overall height mm | 93 |
| Overall length mm | 40 |
| Overall width mm | 99.5 |
| Power Consumption @ 12V | 0.06Amps |
| Power Consumption @ 24V | 0.06Amps |
| Related Products | 24550, 115187 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Volts | 12-36V |
| Watts | 1-5W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
