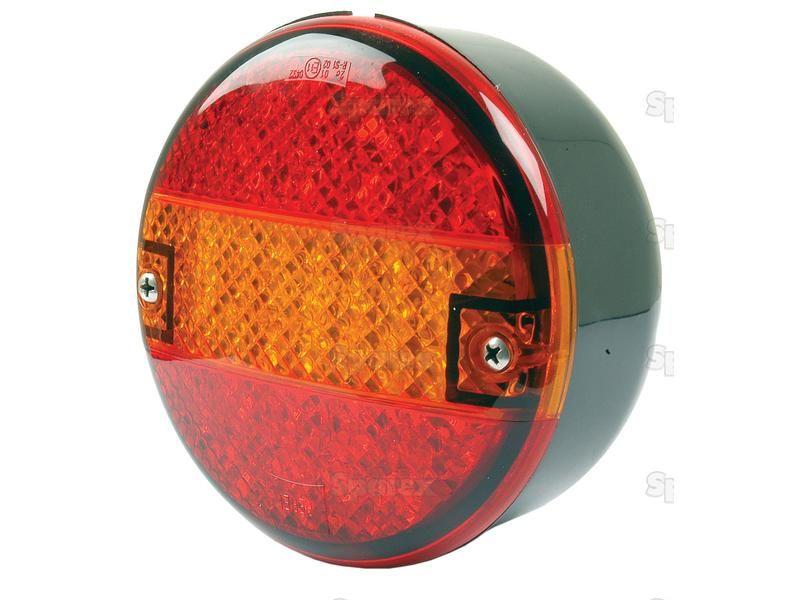

LED Rear Combination Light, Function: 3, Brake / Tail / Indicator, RH & LH, 12-24V
Part Number: S.112860Categories: Electrical Accessories
Part Number: S.112860
Grade: Replacement
Part Details
LED Rear Combination Light, Function: 3, Brake / Tail / Indicator, RH & LH, 12-24V Fixing: 2 BoltsE Approved: Cable length:1000mm
Technical Information
| Ø mm | 140 |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | No |
| Connection Type | None |
| ECE Rating | Reg 4 |
| Fixing | 2 Bolts |
| Function | 3, Brake / Tail / Indicator |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Red / Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 62 / 45 |
| Lumens Raw | 80 / 92 |
| Lux Value | 34.2 |
| Number of LEDs | 20 LEDs |
| Overall height mm | 140 |
| Overall length mm | 100 |
| Overall width mm | 140 |
| Power Consumption @ 12V | 0.42Amps |
| Power Consumption @ 24V | 0.21Amps |
| Related Products | 24550, 119257, 119259 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | No |
| SAE Approved | Yes |
| Shape | Rectangular |
| Tariff Code | 8539500000 |
| Volts | 12-24V |
| Watts | 5W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 60°C |
