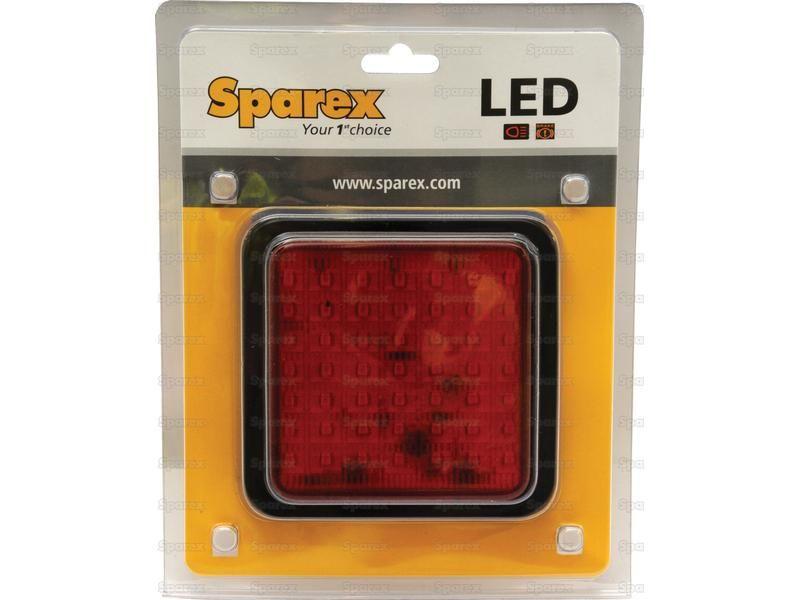

LED Rear Combination Light, Function: 2, Tail / Brake, RH & LH, 10-30V
Part Number: S.113386Categories: Electrical Accessories
Part Number: S.113386
Grade: Replacement
Part Details
LED Rear Combination Light, Function: 2, Tail / Brake, RH & LH, 10-30V Fixing: Grommet mountE Approved: Cable length:1000mmFoam Backing ensures vibration resistance
Technical Information
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | No |
| Connection Type | None |
| ECE Rating | Reg 4 |
| Fixing | Grommet mount |
| Function | 2, Tail / Brake |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Red |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 96 |
| Lumens Raw | 120 |
| Lux Value | 30.7 |
| Number of LEDs | 49 LEDs |
| Overall height mm | 121 |
| Overall length mm | 31 |
| Overall width mm | 126 |
| Power Consumption @ 12V | 0.84Amps |
| Power Consumption @ 24V | 0.19Amps |
| Related Products | 113384, 113388, 24550, 119257, 119259 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8543709099 |
| Volts | 10-30V |
| Watts | 7W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 60°C |
