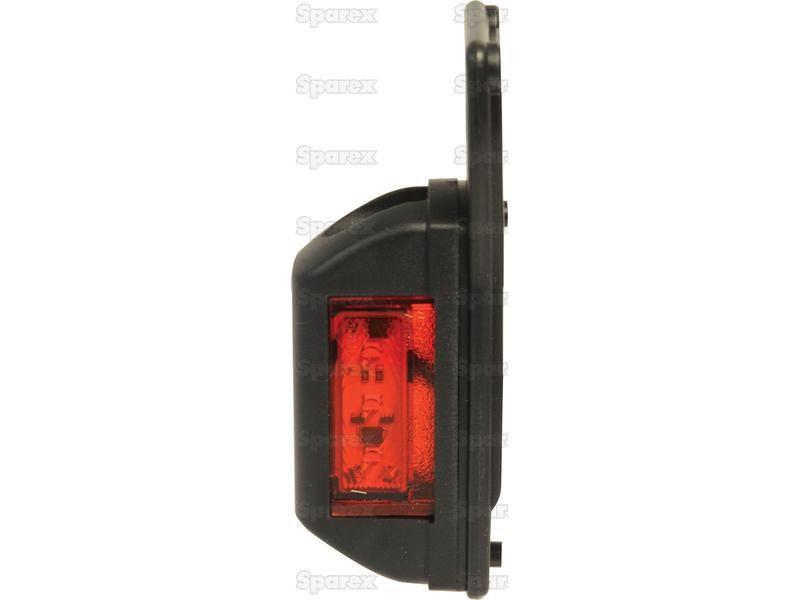

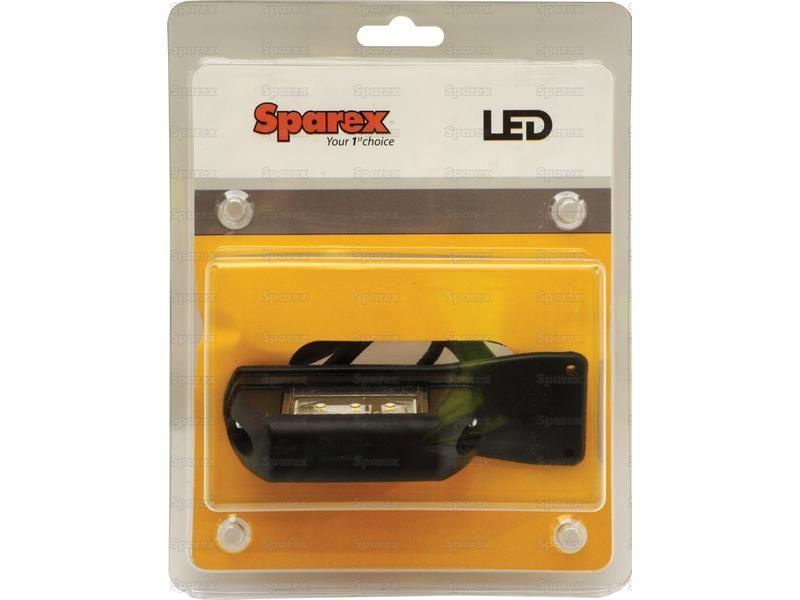

LED Outline Front/Rear Facing Marker Light, LH, 12-24V
Part Number: S.113391Categories: Electrical Accessories
Part Number: S.113391
Grade: Replacement
Part Details
LED Outline Front/Rear Facing Marker Light, LH, 12-24V ECE Rating: Reg 7CE Approved: YesIP Rating: IP68Lens Colour: Red / Clear
Technical Information
| Brand | Sparex |
| Cable length mm | 1500 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 7 |
| Fixing | 2 Bolts |
| Function | 2, Front / Tail |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP68 |
| Lens Colour | Clear / Red |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Number of LEDs | 6 LEDs |

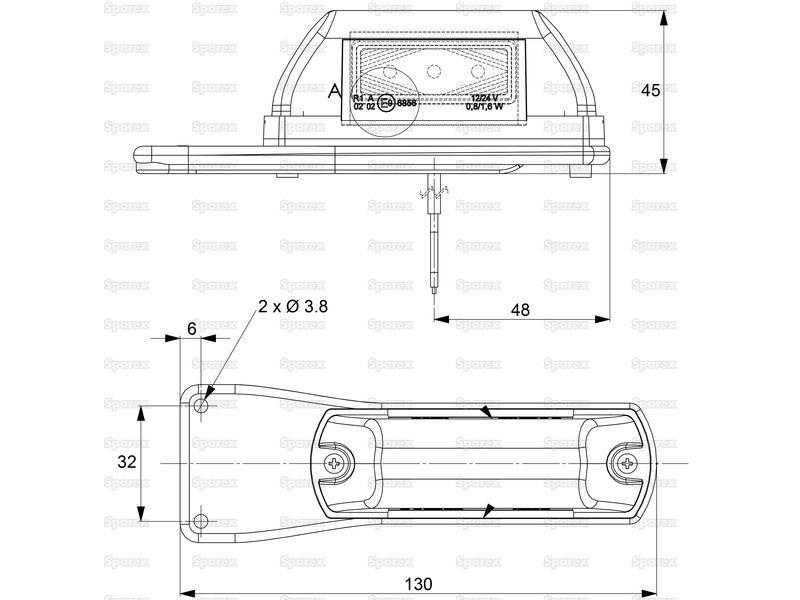

| Overall height mm | 130 |
| Overall length mm | 45 |
| Overall width mm | 44 |
| Position | Front / Rear facing |
| Power Consumption @ 12V | 0.07Amps |
| Power Consumption @ 24V | 0.07Amps |
| Related Products | 113357, 113358, 119256, 119258 |
| RH or LH Fitment | LH |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8543709099 |
| Volts | 12-24V |
| Watts | 0.8-1.6W |
| With Noise Suppression | No |
| Working Temperature Degrees Centregrade | -40°C to 60°C |
