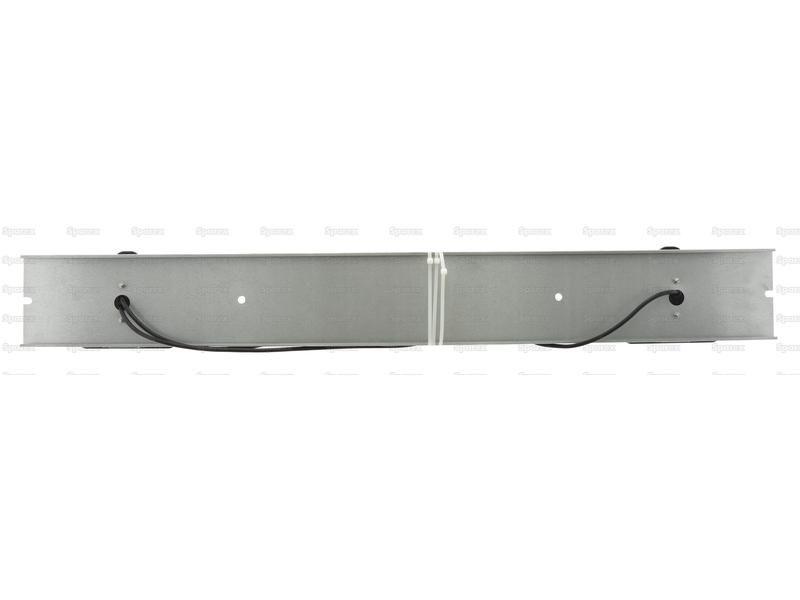

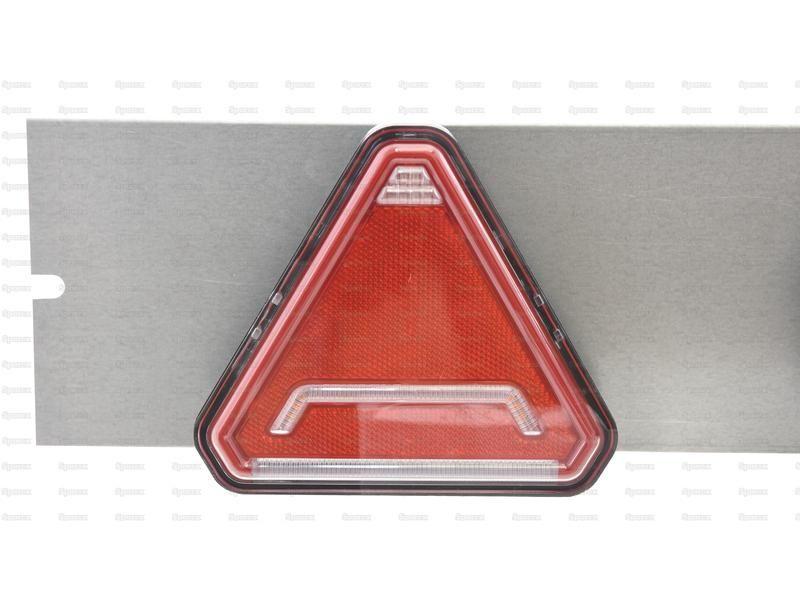

LED Lighting Board, Function: 6, Brake / Tail / Indicator / Fog / Number Plate / Reflector, 12V (DC)
Part Number: S.164126Categories: Electrical Accessories
Part Number: S.164126
Grade: Replacement
Part Details
LED Lighting Board, Function: 6, Brake / Tail / Indicator / Fog / Number Plate / Reflector, 12V (DC) Cable length: 14000mmFitted with: Fixing: Bolt onOverall length: 1370mm
Technical Information
| Brand | Sparex |
| Cable length ft | 50 |
| Cable length Metres | 14 |
| Cable length mm | 14000 |
| CE Approved | Yes |
| ECE Rating | Reg 10 |
| Fixing | Bolt on |
| Function | 6, Brake / Tail / Indicator / Fog / Number Plate / Reflector |
| Housing Material | Polycarbonate |
| IP Rating | IP65 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | Indicator: 118, Tail: 15, Brake: 115, Fog: 84 |
| Lumens Raw | Indicator: 142, Tail: 18, Brake: 138, Fog: 100 |
| Lux Value | Indicator: 200cd, Tail: 20cd, Brake: 160cd, Fog: 400cd |
| Overall height mm | 160 |
| Overall length mm | 1370 |
| Overall width mm | 65 |
| Power Consumption @ 12V | Indicator: 1.5Amps, Tail: 0.34mA, Brake: 0.80mA, Fog: 0.54mA |
| RH or LH Fitment | RH & LH |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Triangle |
| Tariff Code | 8539500000 |
| Volts | 12V |
| With Noise Suppression | Yes |
