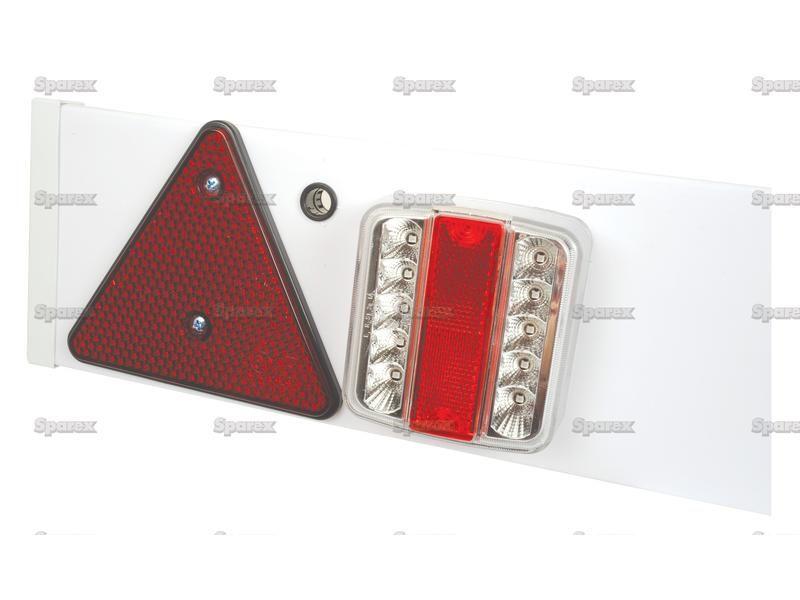

LED Lighting Board, Function: 4, Brake / Tail / Indicator / Number Plate, 12V
Part Number: S.26298Categories: Electrical Accessories
Part Number: S.26298
Grade: Replacement
Part Details
LED Lighting Board, Function: 4, Brake / Tail / Indicator / Number Plate, 12V Cable length: 12000mmFitted with: S.3400 Male 7 Pin PlugFixing: Bolt onOverall length: 1200mm
Technical Information
| Brand | Sparex |
| Cable length ft | 39 |
| Cable length Metres | 12 |
| Cable length mm | 12000 |
| CE Approved | No |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fitted with | S.3400 Male 7 Pin Plug |
| Fixing | Bolt on |
| Function | 4, Brake / Tail / Indicator / Number Plate |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Red / Clear / Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 9.6 - 63.8 |
| Lumens Raw | 10.6 - 61.2 |
| Lux Value | 1.8 - 10.7 @10m |
| Number of LEDs | 14 LEDs |
| Overall height mm | 20 |
| Overall length mm | 1200 |
| Overall width mm | 140 |
| Power Consumption @ 12V | 0.08Amps |
| Related Products | 3400, 3869 |
| Replacement lamp | S.119479 (4 function) |
| Replacement lens | No |
| Replacement triangle | S.3869 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539500000 |
| Volts | 12V |
| Watts | 1W |
| With Noise Suppression | No |
| Working Temperature Degrees Centregrade | -30°C to 65°C |
