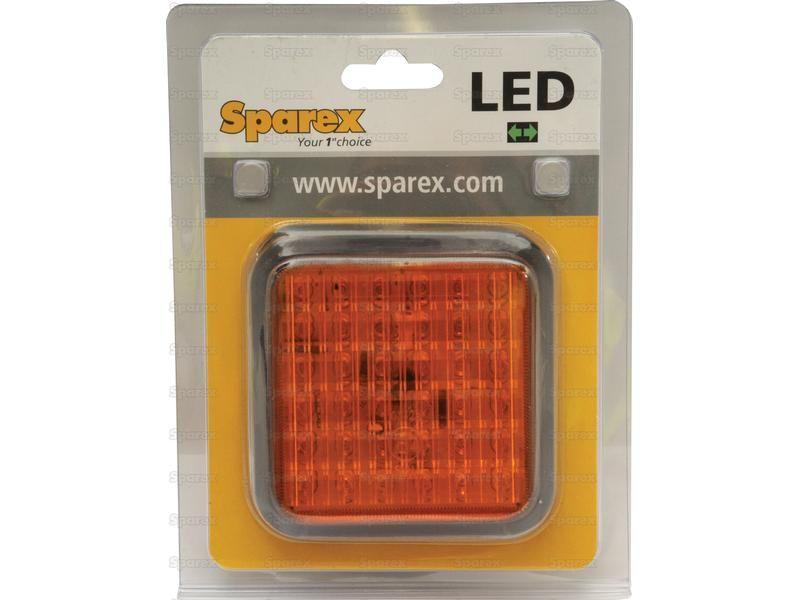

LED Indicator Light, RH & LH, 10-30V
Part Number: S.113385Categories: Electrical Accessories
Part Number: S.113385
Grade: Replacement
Part Details
LED Indicator Light, RH & LH, 10-30V ECE Rating: Reg 4CE Approved: NoIP Rating: IP67Lens Colour: Amber
Technical Information
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | No |
| Connection Type | None |
| ECE Rating | Reg 4 |
| Fixing | Grommet mount |
| Function | 1, Indicator |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 51.8 |
| Lumens Raw | 108 |
| Lux Value | 16.5 |
| Number of LEDs | 36 LEDs |

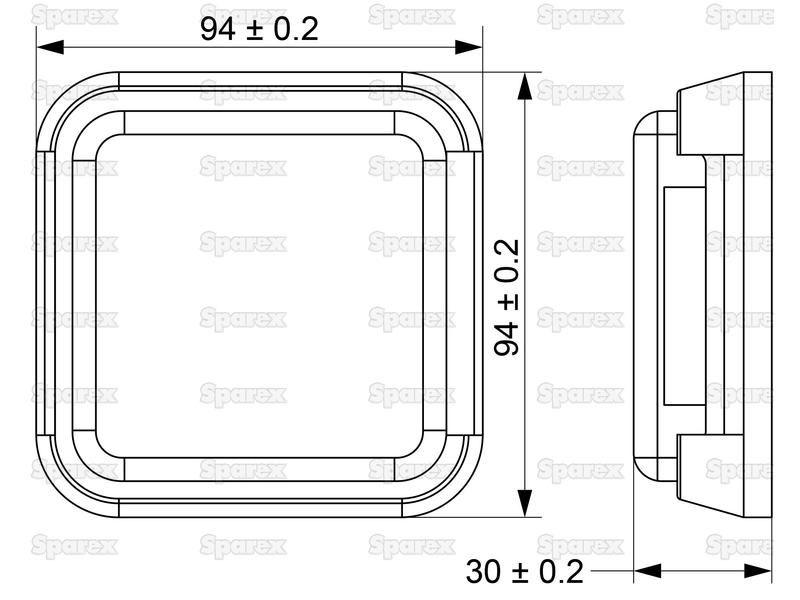

| Overall height mm | 94 |
| Overall length mm | 30 |
| Overall width mm | 94 |
| Power Consumption @ 12V | 0.167Amps |
| Power Consumption @ 24V | 0.08Amps |
| Related Products | 113387, 113389, 113396, 24550, 119257, 119259 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8543709099 |
| Volts | 10-30V |
| Watts | 2W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 60°C |
