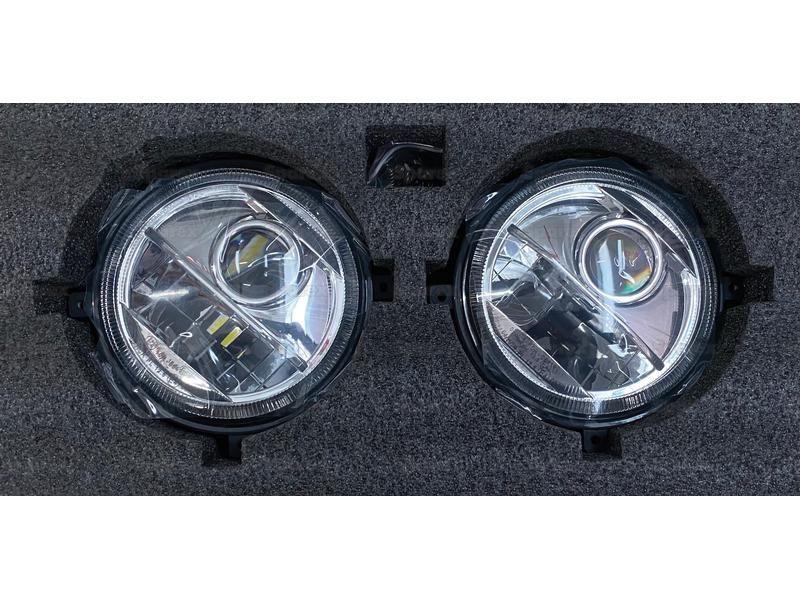

LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson

Part Number: S.163618Categories: Electrical Accessories
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson
LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V for Massey Ferguson

Part Number: S.163618

Grade: Replacement

Part Details

LED Head Light Kit, Interference: Class 3, LH (LH Dip), 1560 - 2760 Lumens, 10-30V ECE Rating: Reg112 - E4 112R01/08*0571*00, Reg10 - E4 10R05/01*4199*00CE Approved: YesIP Rating: IP6K9KConnection Type: H4 Connector

Technical Information

Ø mm 140
Beam Angle Low Beam 20° / High Beam 24°
Brand Sparex
Cable length mm 150
CE Approved Yes
Connection Type H4 Connector
Dip LH Dip
ECE Rating Reg112 - E4 112R01/08*0571*00, Reg10 - E4 10R05/01*4199*00
Fixing 3 Bolts
Function 2, High / Low Beam
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 550 - 1670
Lumens Raw 1560 - 2760
Lux Value Low Beam 21000cd
Number of LEDs 2 LEDs
Overall height mm 140
Overall length mm 140
Overall width mm 88
Power Consumption @ 12V Low Beam 1.33Amps
Related Products 151850, 163905, 163906
RH or LH Fitment LH
RoHS Approved Yes
SAE Approved No
Shape Round
Tariff Code 8539500000
Volts 10-30V
Watts Low Beam 16W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

Massey Ferguson
5425 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5445 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5460SA, 5465 (5400 Series), 5470 (5400 Series), 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7490 (7400 Series), 7495 (7400 Series), 8450 (8400 Series), 8460 (8400 Series), 8470 (8400 Series), 8480 (8400 Series)
