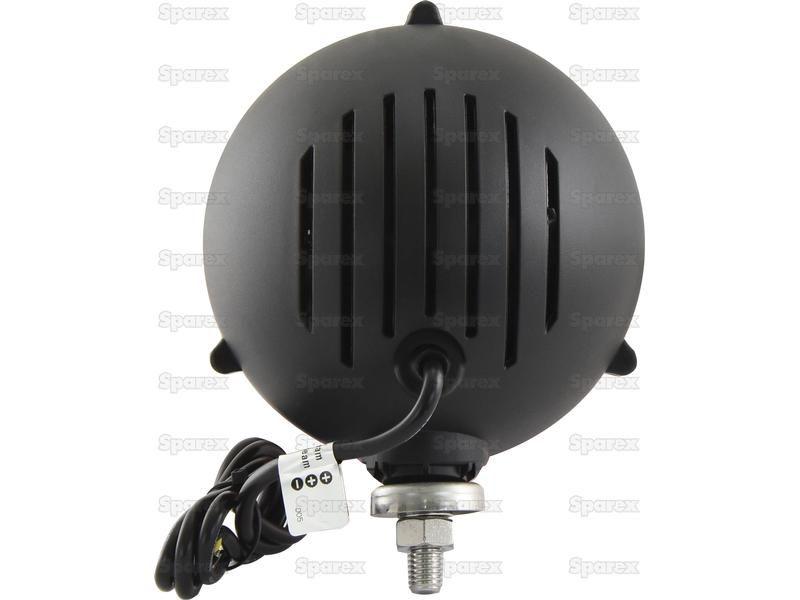

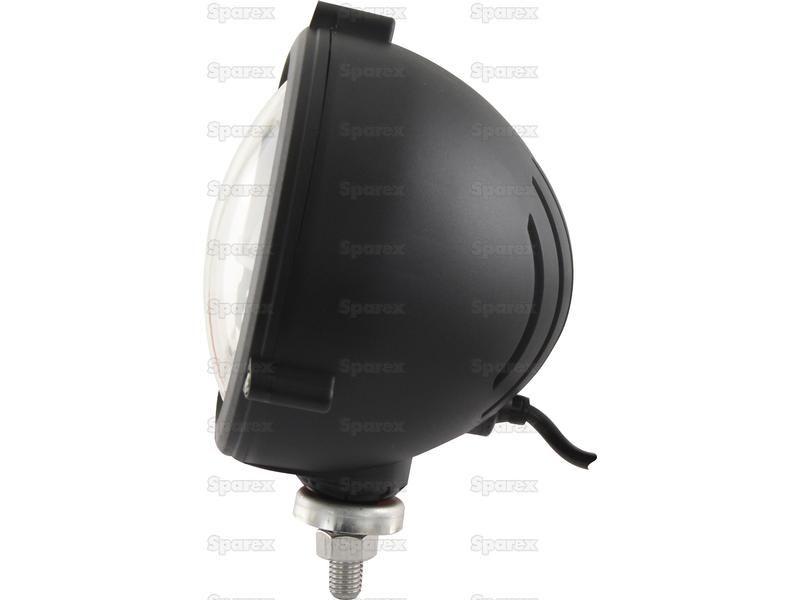

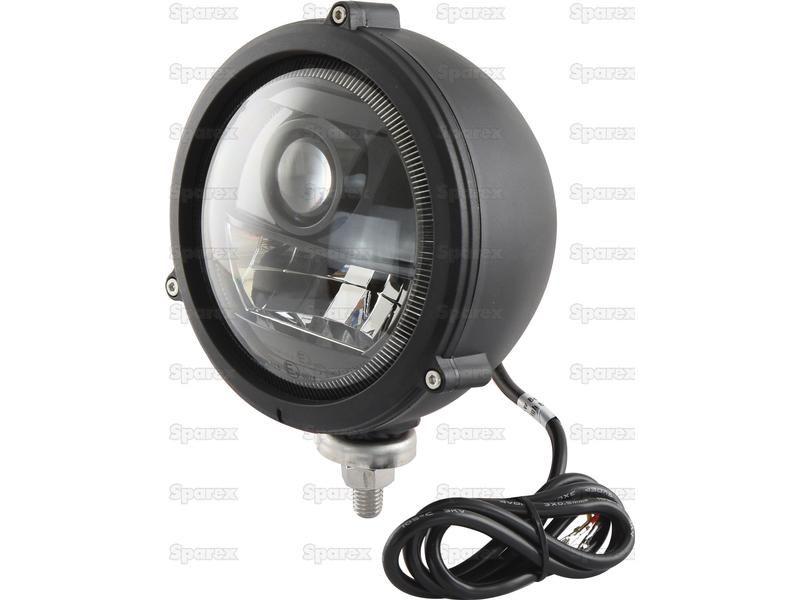

LED Head Light, Interference: No, RH & LH (LH Dip), 1200 - 1290 Lumens, 10-30V for Steyr 6185CVT
Part Number: S.143231Categories: Electrical Accessories
Part Number: S.143231
Grade: Replacement
Part Details
LED Head Light, Interference: No, RH & LH (LH Dip), 1200 - 1290 Lumens, 10-30V ECE Rating: Reg112 - E4 112R01/08*0571*00CE Approved: YesIP Rating: IP65Connection Type: AMP Connector Pin
Technical Information
| Ø mm | 150.6 |
| Beam Angle | Low Beam 65° / High Beam 30° |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | AMP Connector Pin |
| Dip | LH Dip |
| ECE Rating | Reg112 - E4 112R01/08*0571*00 |
| Fixing | 1 Bolt |
| Function | 2, High / Low Beam |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP65 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 590 - 690 |
| Lumens Raw | 1200 - 1290 |
| Lux Value | 59000 - 21000 |
| Number of LEDs | 2 LEDs |
| Overall height mm | 172 |
| Overall length mm | 150.6 |
| Overall width mm | 125.7 |
| Power Consumption @ 12V | 1.25Amps |
| Power Consumption @ 24V | 0.63Amps |
| Related Products | 119979, 149213, 149214, 149215 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 15W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 60°C |
