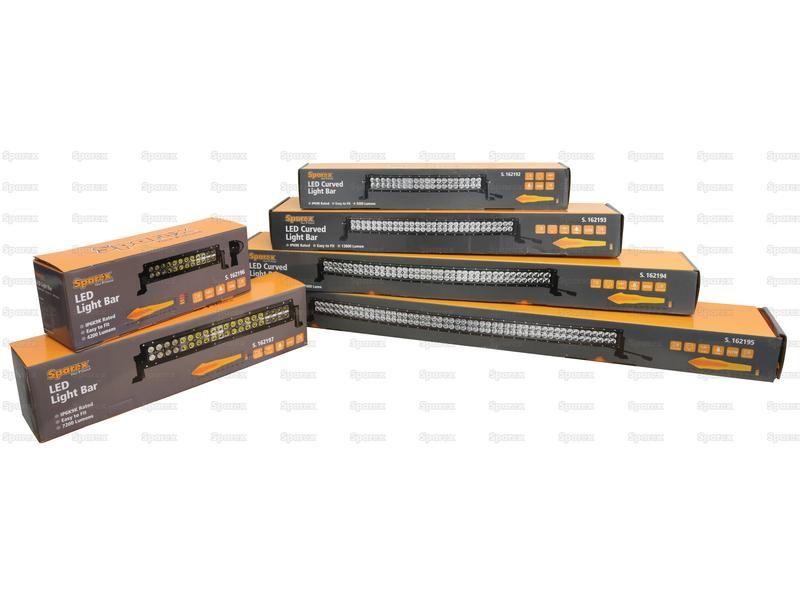

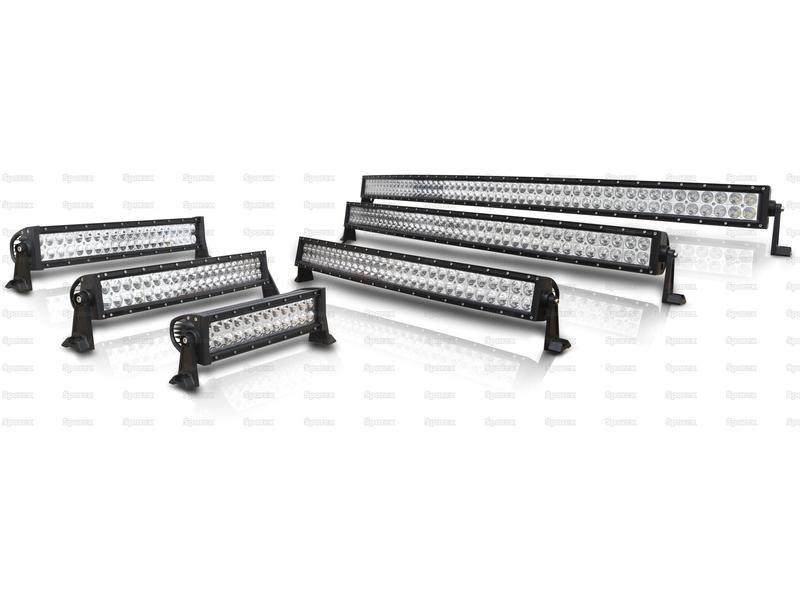

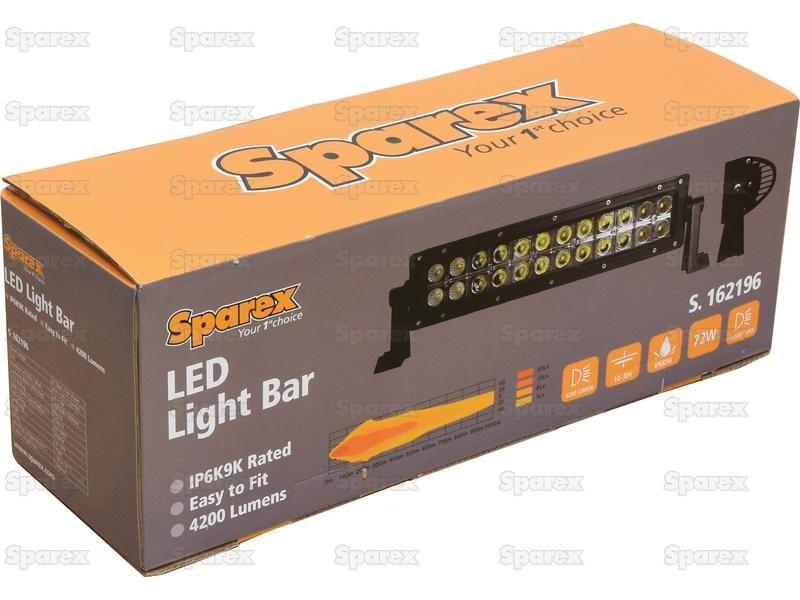

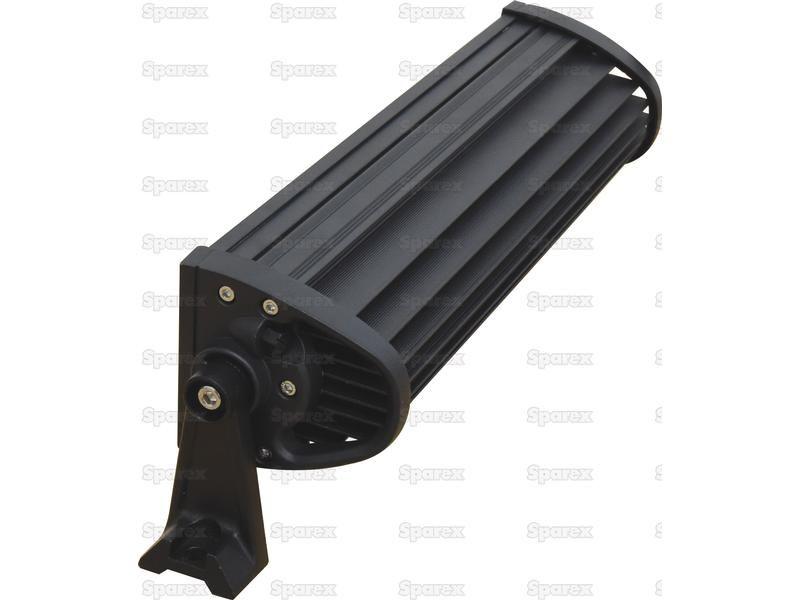

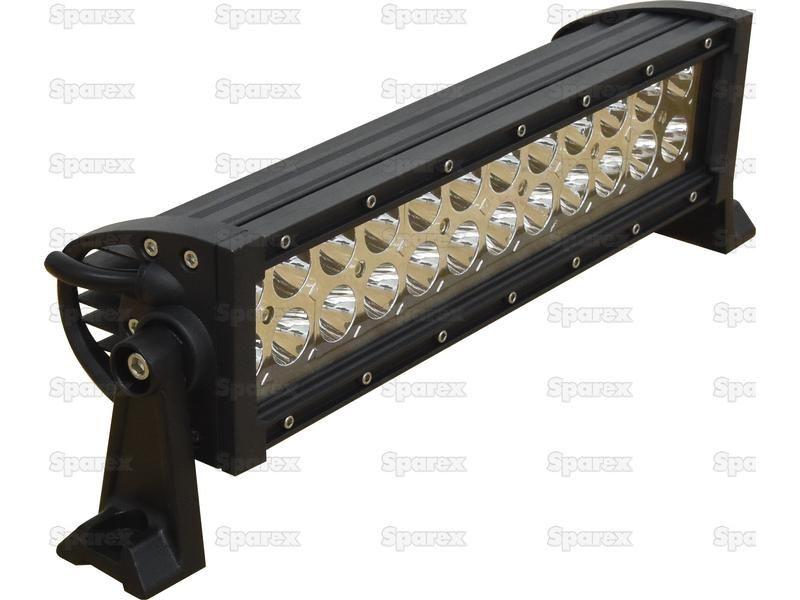

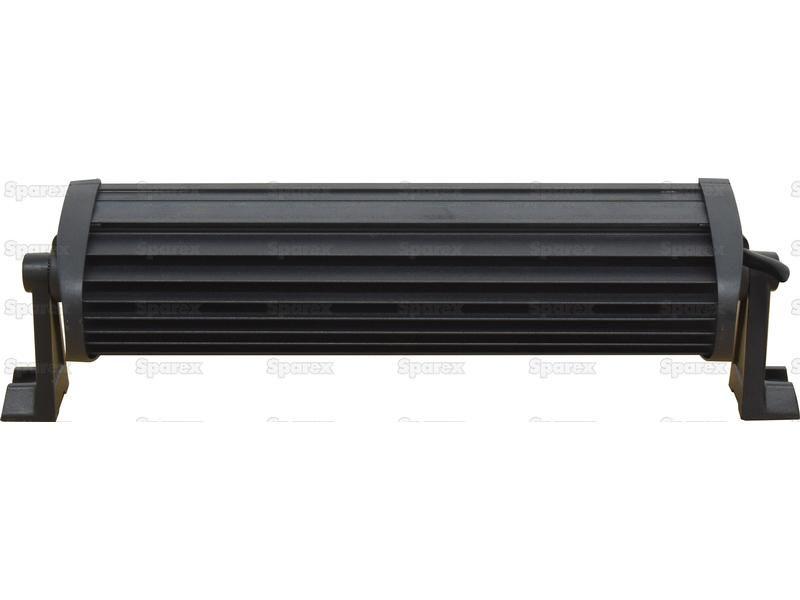

LED Flat Work Light Bar, 410mm, 4200 Lumens, 10-30V
Part Number: S.162196Categories: Electrical Accessories
Part Number: S.162196
Grade: Replacement
Part Details
LED Flat Work Light Bar, 410mm, 4200 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: None
Technical Information
| Beam Angle | 8° Spot Beam / 90° Flood Beam |
| Brand | Sparex |
| Cable Length ins | 19.6 |
| Cable length mm | 500 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | Bracket |
| Function | Spot Beam / Flood Beam |
| Housing Material | Die Cast |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 2800 |
| Lumens Raw | 4200 |
| Lux Value | 1800 |
| Number of LEDs | 24 LEDs |

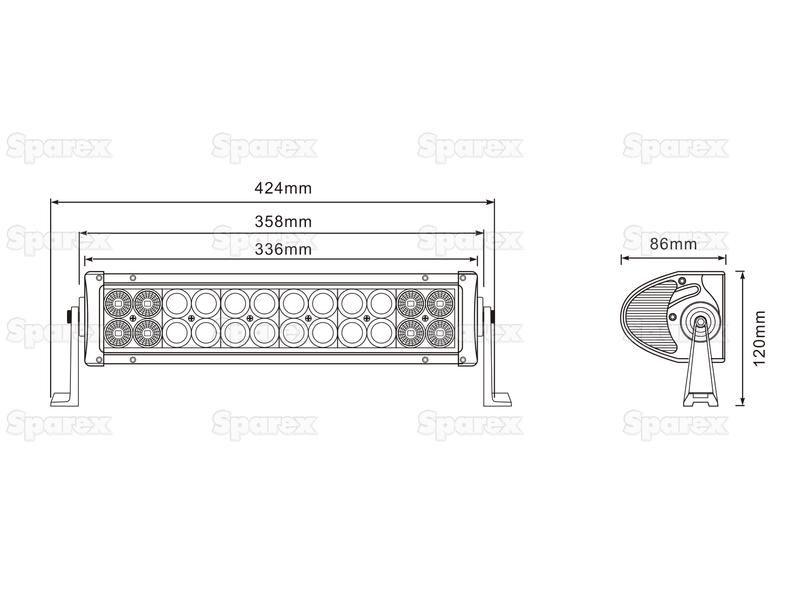

| Overall height ins | 4.73 |
| Overall height mm | 120 |
| Overall length ins | 16 |
| Overall length mm | 410 |
| Overall width ins | 3.39 |
| Overall width mm | 90 |
| Power Consumption @ 12V | 3.2Amps |
| Power Consumption @ 24V | 1.6Amps |
| Related Products | 119470, 162197 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539100090 |
| Type | Flat |
| Volts | 10-30V |
| Watts | 72W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
