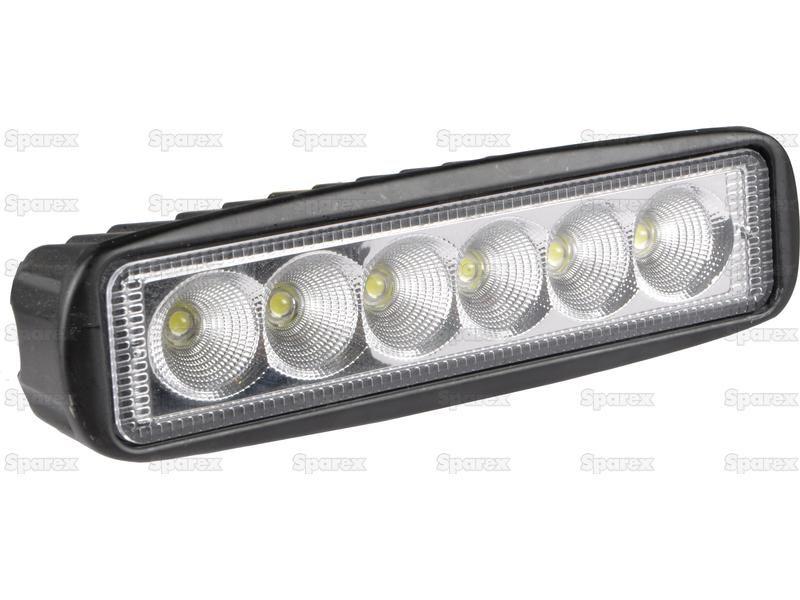

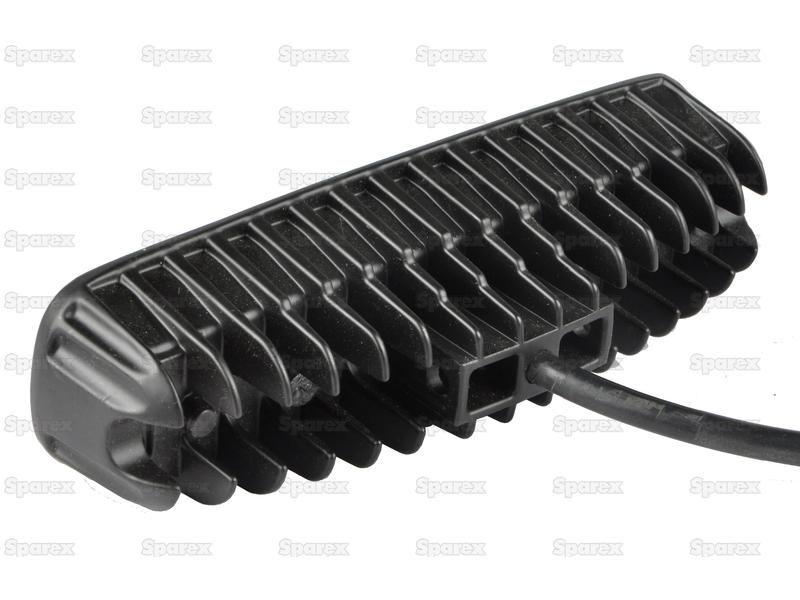

LED Flat Work Light Bar, 165mm, 2100 Lumens, 10-30V
Part Number: S.155420Categories: Electrical Accessories
Part Number: S.155420
Grade: Replacement
Part Details
LED Flat Work Light Bar, 165mm, 2100 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP67Connection Type: None
Technical Information
| Beam Angle | 60° |
| Brand | Sparex |
| Cable length mm | 400 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Function | Flood Beam |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 2100 |
| Lumens Raw | 2500 |
| Lux Value | 1600 |
| Number of LEDs | 6 LEDs |

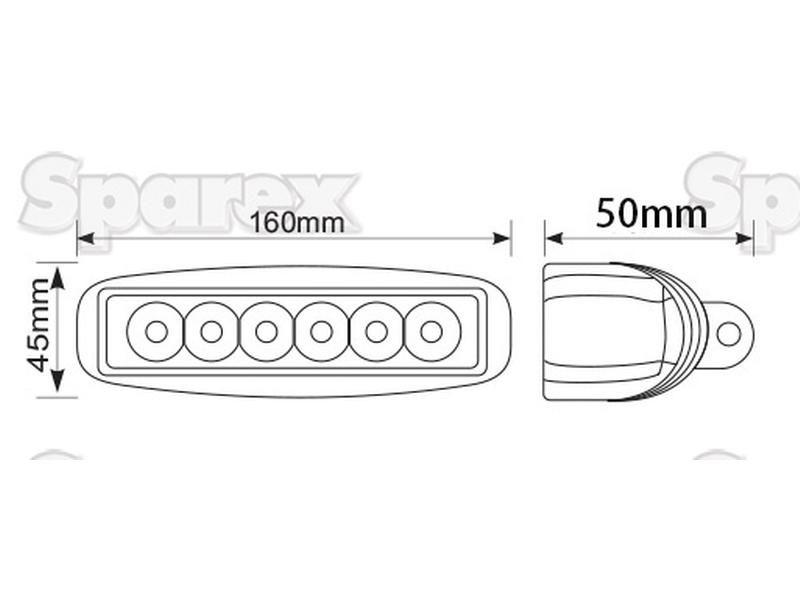

| Overall height mm | 47.5 |
| Overall length mm | 165 |
| Overall width mm | 40 |
| Power Consumption @ 12V | 0.75Amps |
| Power Consumption @ 24V | 0.40Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Type | Flat |
| Volts | 10-30V |
| Watts | 30W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
