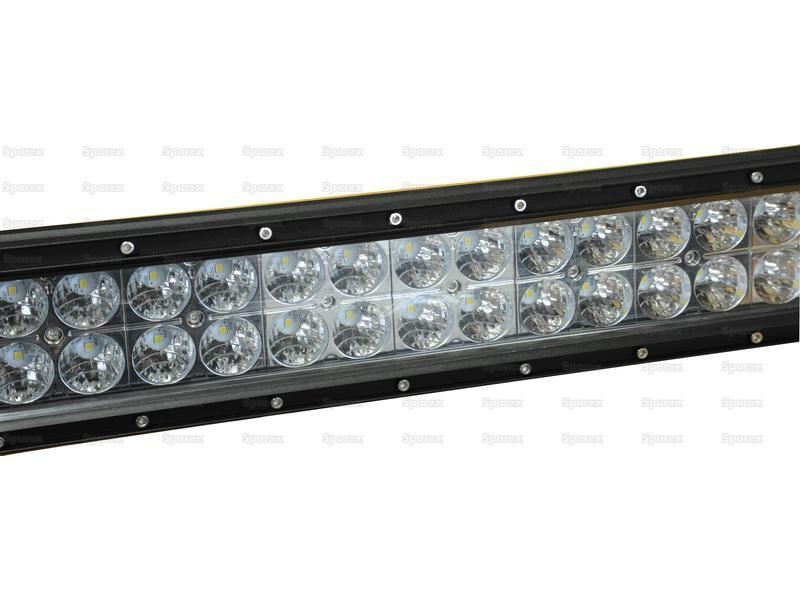

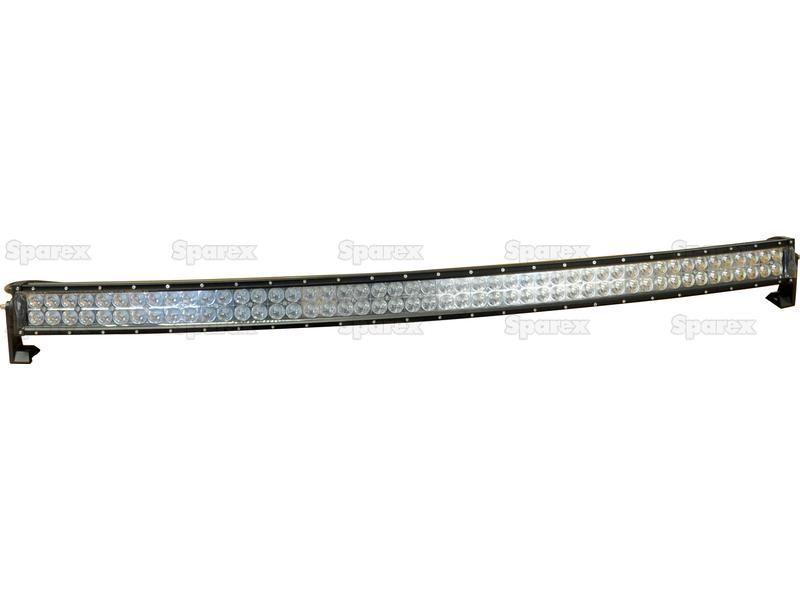

LED Curved Work Light Bar, 1344mm, 22080 Lumens, 10-30V
Part Number: S.119437Categories: Electrical Accessories
Part Number: S.119437
Grade: Replacement
Part Details
LED Curved Work Light Bar, 1344mm, 22080 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KConnection Type: DT Connector
Technical Information

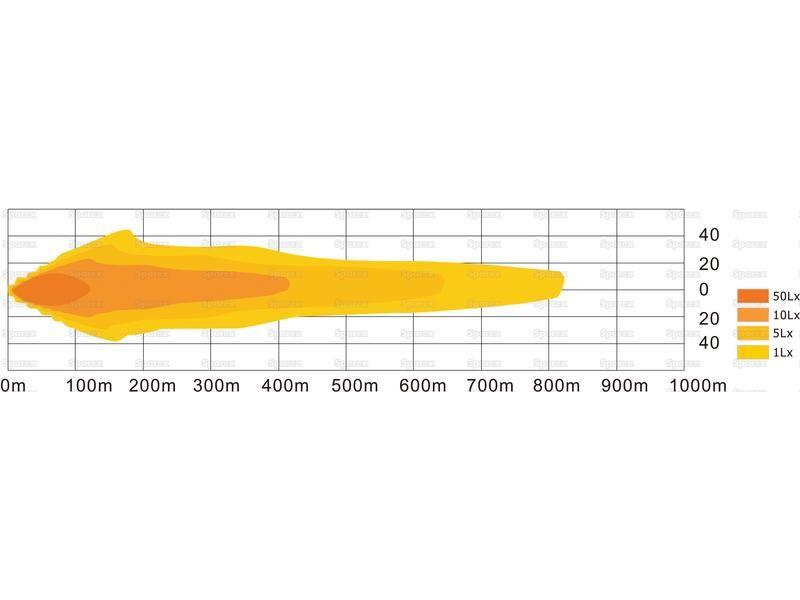

| Beam Angle | 8° Spot Beam / 90° Flood Beam |
| Brand | Sparex |
| Cable Length ins | 39.37 |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | DT Connector |
| ECE Rating | Reg 10 |
| Fixing | Bracket |
| Function | Spot Beam / Flood Beam |
| Housing Material | Die Cast |
| Interference EMC EMI CISPR 25 | Class 1 |
| IP Rating | IP69K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 8376 |
| Lumens Raw | 22080 |
| Lux Value | 38500 |
| Number of LEDs | 96 LEDs |
| Overall height ins | 4.8 |
| Overall height mm | 122 |
| Overall length ins | 53 |
| Overall length mm | 1344 |
| Overall width ins | 5.7 |
| Overall width mm | 145 |
| Power Consumption @ 12V | 7.76Amps |
| Power Consumption @ 24V | 3.86Amps |
| Related Products | 119470 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539100090 |
| Type | Curved |
| Volts | 10-30V |
| Watts | 288W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
