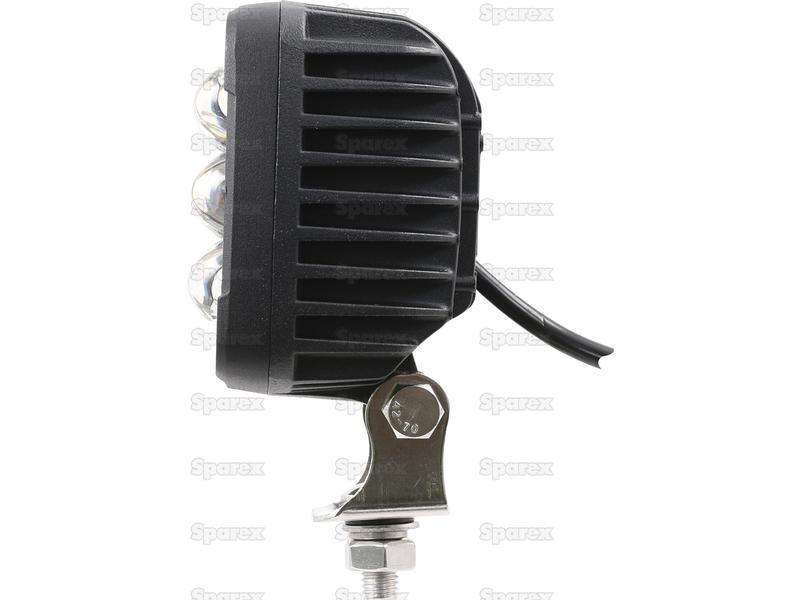

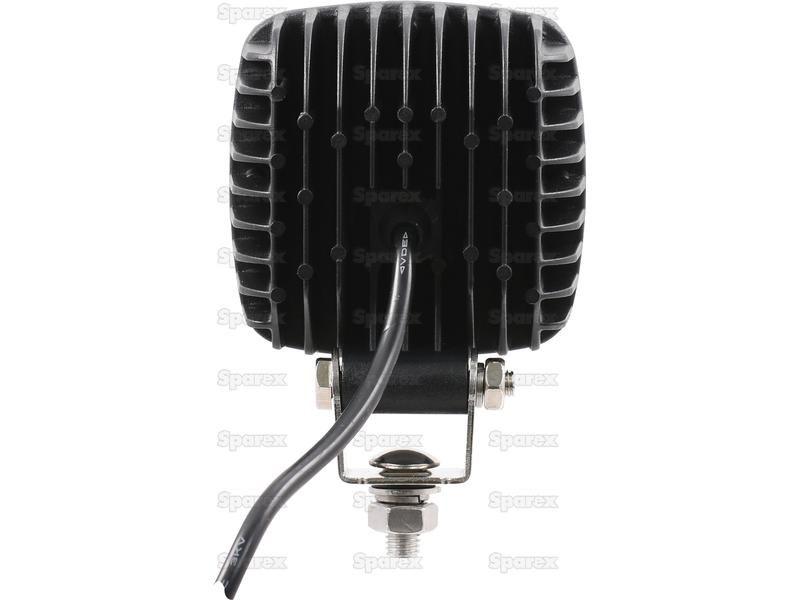

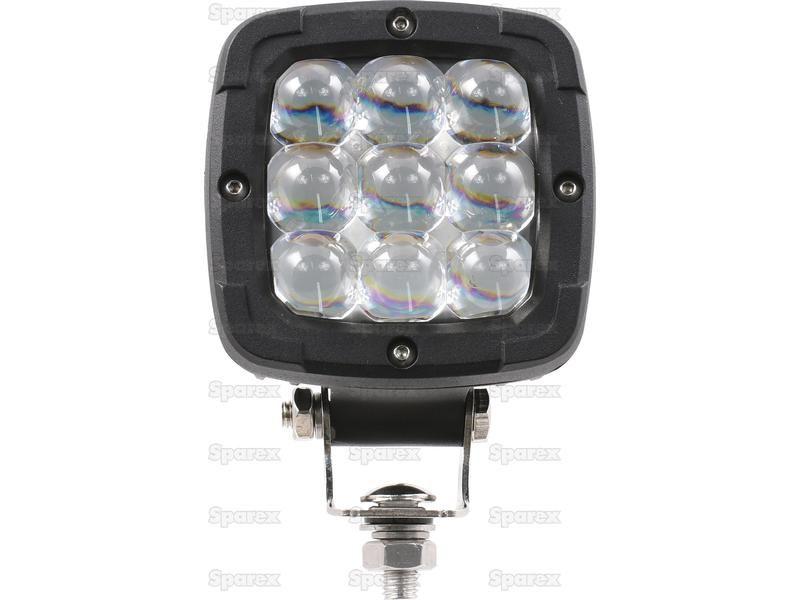

LED Blue Spot Work Light for Spraying, 10-80V
Part Number: S.148191Categories: Electrical Accessories
Part Number: S.148191
Grade: Replacement
Part Details
LED Blue Spot Work Light for Spraying, 10-80V ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KLumens: 400
Technical Information
| Beam Angle | 10° |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Function | Spot Beam |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP69K |
| Lens Colour | Clear |
| Lens Material | Stalinite |
| Light source | LED |
| Lumens Effective | 200 |
| Lumens Raw | 400 |
| Lux Value | 20700 |
| Notes | Not suitable for Forklifts over 48 Volts |
| Number of LEDs | 9 LEDs |
| Overall height mm | 124.9 |
| Overall length mm | 98.5 |
| Overall width mm | 71.4 |
| Power Consumption @ 12V | 1.75Amps |
| Power Consumption @ 24V | 0.875Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Volts | 10-80V |
| Watts | 21W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
