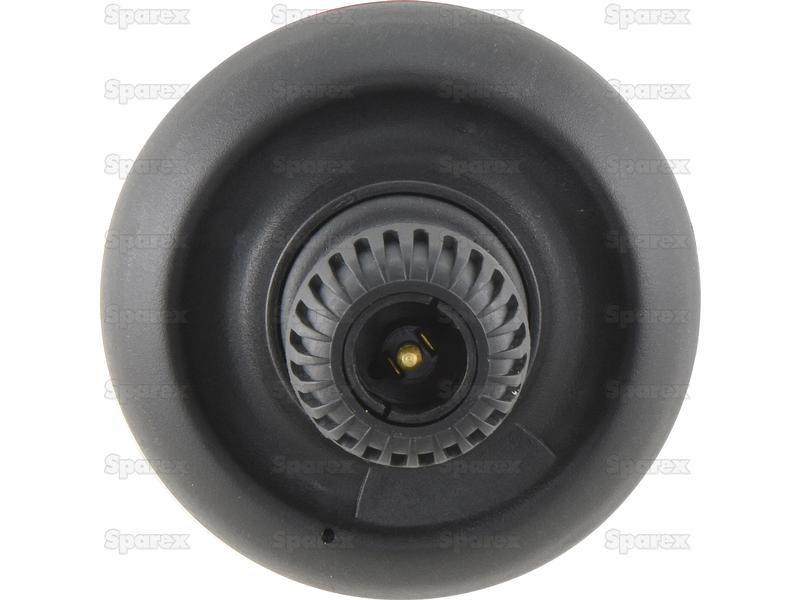

LED Beacon (Amber), Interference: Class 5, Flexible Pin, 12-24V for Fendt 924 Vario (Favorit 900 Series)
Part Number: S.162656Categories: Electrical Accessories
Part Number: S.162656
Grade: Replacement
Part Details
LED Beacon (Amber), Interference: Class 5, Flexible Pin, 12-24V ECE Rating: Reg 10, Reg 65CE Approved: YesIP Rating: IP65Profile: LowFunction: 3 functions: Rotating, Double Flashes, Single Flash
Technical Information
| Ø mm | 130 |
| Brand | Sparex |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10, Reg 65 |
| Fixing | Flexible Pin |
| Function | 3 functions: Rotating, Double Flashes, Single Flash |
| Housing Material | Rubber |
| Interference EMC EMI CISPR 25 | Class 5 |
| IP Rating | IP65 |
| ISO Rating | ISO 9001 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1200 |
| Lumens Raw | 2400 |
| Lux Value | 480 |
| Notes | Fendt grade specification with CISPR25 EMC |
| Number of LEDs | 12 LEDs |
| Overall height mm | 185 |
| Overall length mm | 130 |
| Overall width mm | 130 |
| Power Consumption @ 12V | 0.667Amps |
| Power Consumption @ 24V | 1.0 Amp |
| Profile | Low |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Speed | 125+/-10 rpm Double Flash |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 8-24W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
Manufacturer Part Numbers
| Fendt |
|---|
| G842900140010 |
