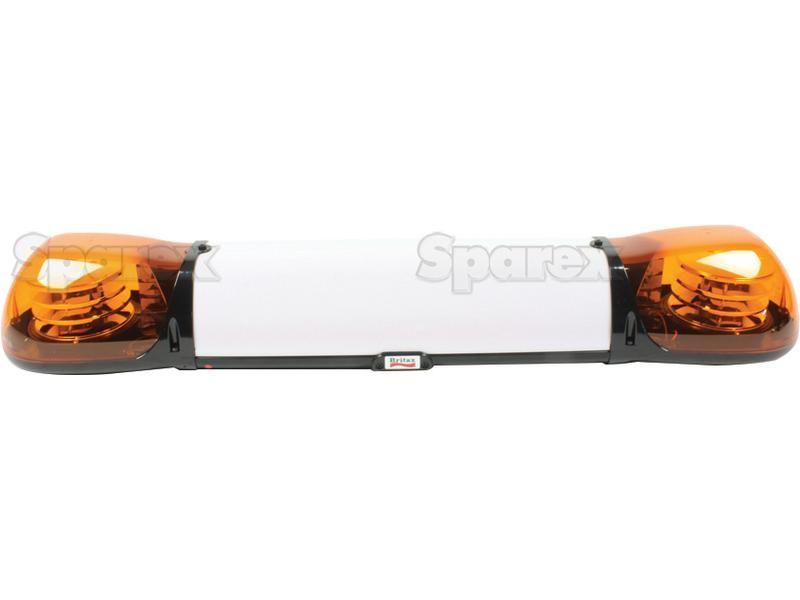

LED Aerolite Bar - 4 Bolts, 12-24V
Part Number: S.119767Categories: Electrical Accessories
Part Number: S.119767
Grade: Replacement
Part Details
LED Aerolite Bar - 4 Bolts, 12-24V Overall length: 1000mmECE Rating: Reg 10CE Approved: YesIP Rating: IP65
Technical Information
| Brand | Britax |
| Cable length mm | 3000 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | 4 Bolts |
| Function | Double Flash |
| Housing Material | Various Plastic Compounds |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP65 |
| Lens Colour | Amber |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Number of LEDs | 2 Modules |
| Overall height mm | 165 |
| Overall length mm | 1000 |
| Overall width mm | 200 |
| Power Consumption @ 12V | 4.5Amps |
| Power Consumption @ 24V | 3.0Amps |
| Profile | Low |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8512200000 |
| Volts | 12-24V |
| Watts | 54-72W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -30°C to 50°C |
