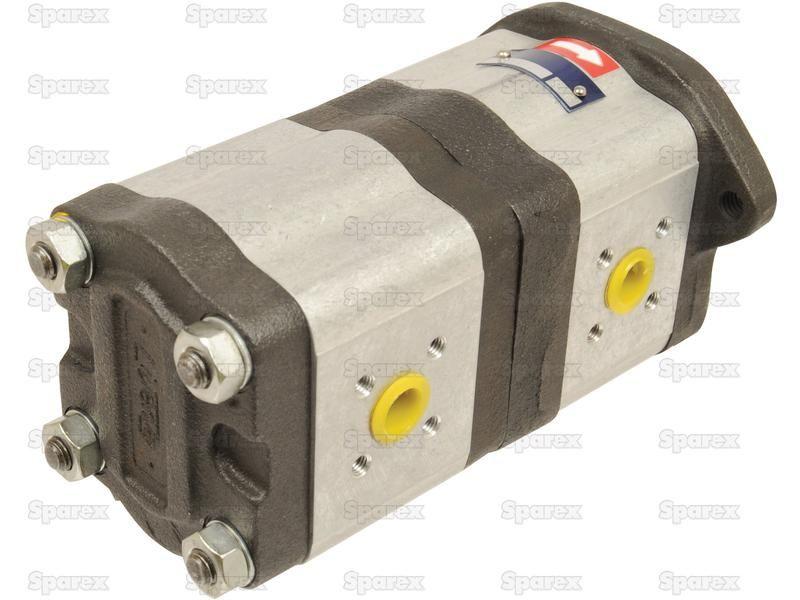

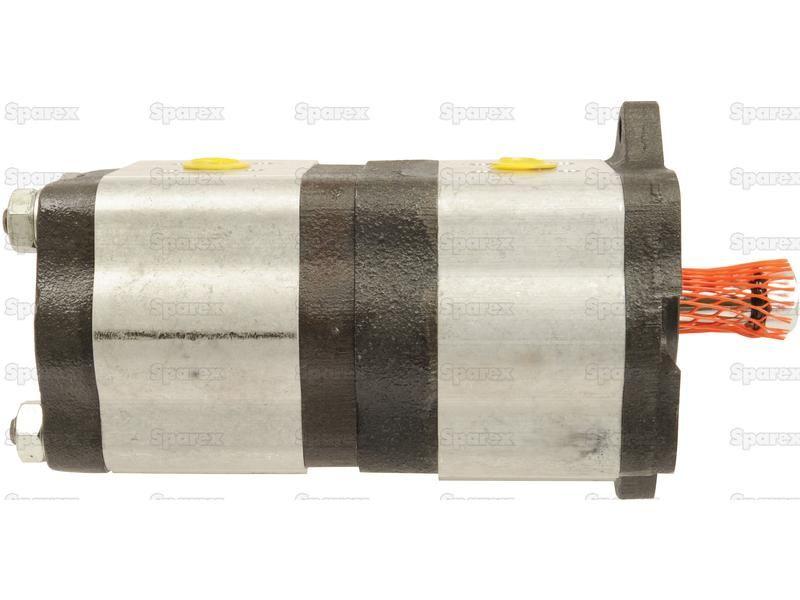

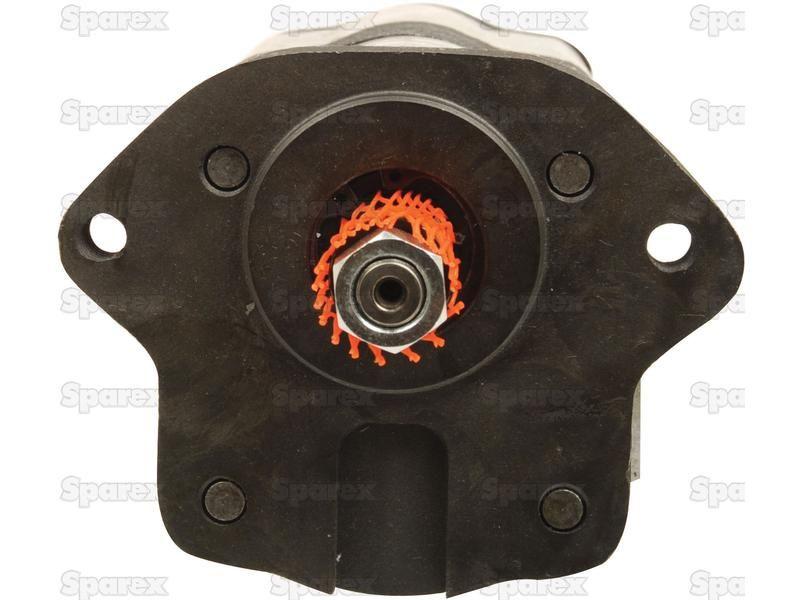

Landini 30 Series, Massey Ferguson 200/400/UZEL Series Hydraulic Pump | 052107T1
Part Number: S.43590Categories: Hydraulics
Part Number: S.43590
Grade: Replacement
Part Details
Landini 30 Series, Massey Ferguson 200/400/UZEL Series Hydraulic Pump | 052107T1
Technical Information
| Brand | Sparex |

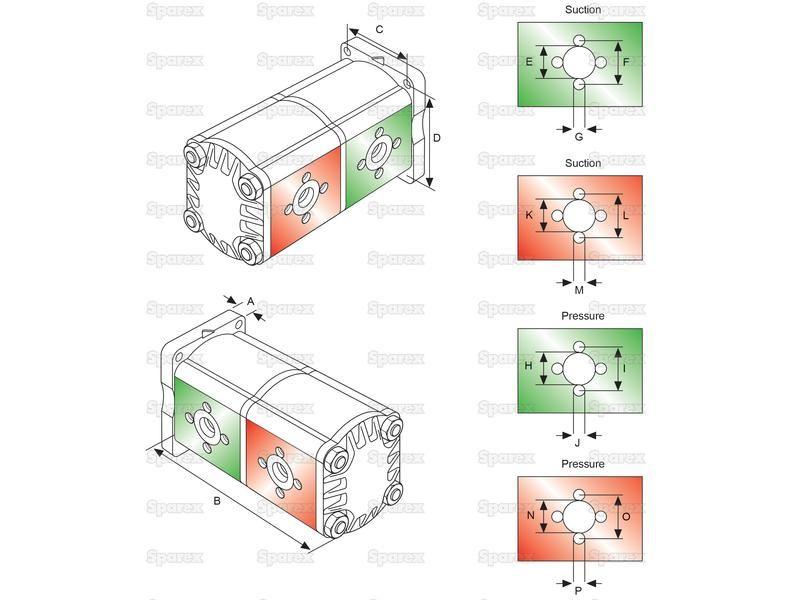

| Diagram specifications | A: 10, - B (mm): 177, - C: 100, - D: , - E: 20, - F: 29, - G: M6, - H: 14, - I: 25, - J: M6, - K: 20, - L: 29, - M: M6, - N: 14, - O: 25, - P: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 29 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 25 |
| Front outlet hole size | 14 |
| Inner max. gallon per minute | 11.62 |
| Inner maximium litres per minute | 44 |
| Length mm | 177 |
| Lip measurement | 10 |
| Outer max. gallons per minute | 7.4 |
| Outer maximium litres per minute | 28 |
| Pump rotation | Clockwise |
| Pump type | Tandem Pump |
| Rear Inlet Hole Fixing Hole Size | M6 |
| Rear Inlet Hole Fixing Hole Spacing | 29 |
| Rear Inlet Hole Size | 20 |
| Rear Outlet Hole Fixing Hole Size | M6 |
| Rear Outlet Hole Fixing Hole Spacing | 25 |
| Rear Outlet Hole Size | 14 |
| Tariff Code | 8413603190 |
| Top hole spacing | 100 |
Manufacturer Part Numbers
| Bosch |
|---|
| F000510502 |
| Massey Ferguson |
| 052107T1 |
