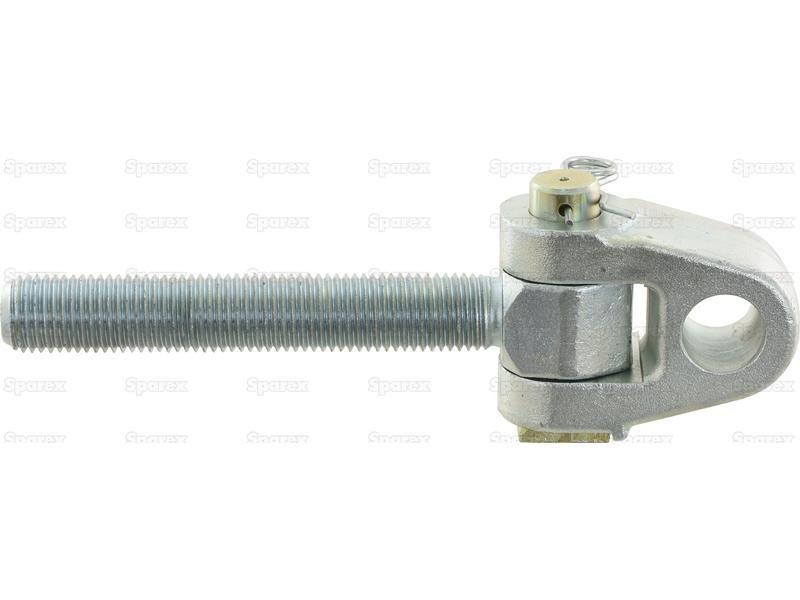

Hydraulic Top Link Knuckle Assembly (Cat. 3)
Part Number: S.10294Categories: PTO (shaft), Linkage
Part Number: S.10294
Grade: Replacement
Part Details
Hydraulic Top Link Knuckle Assembly (Cat. 3) • Thread: 1 1/4" UNC.

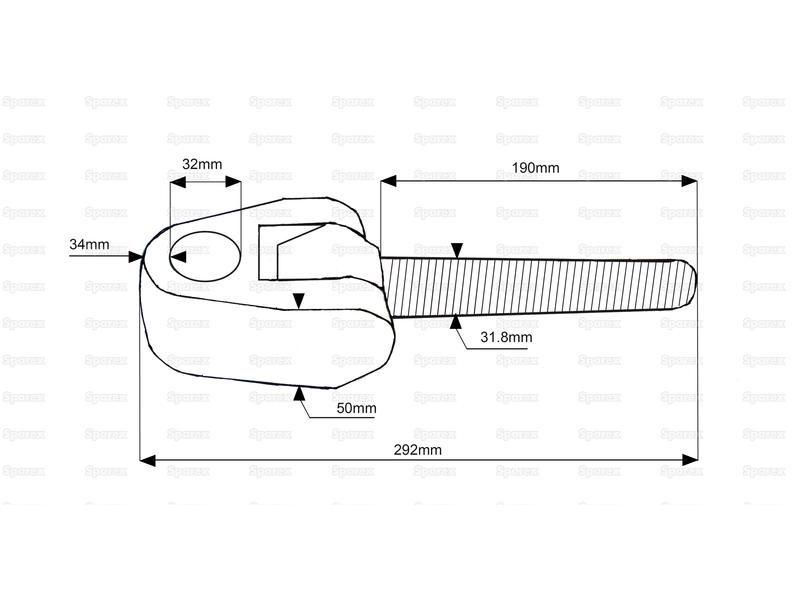

Technical Information
| Brand | Sparex |
| Category | 3 |
| End Radius ins | 1 17/64 |
| End Radius mm | 32 |
| Hole Ø ins | 1 1/4 |
| Hole Ø mm | 32 |
| Knuckle | S.10287 |
| Knuckle Bore Ø ins | 1 1/4 |
| Knuckle Bore Ø mm | 31.8 |
| Knuckle Width ins | 2 |
| Knuckle Width mm | 50.8 |
| LH or RH | RH |
| Overall length ins | 12 33/64 |
| Overall length mm | 318 |
| Related Products | 10288, 10291 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/2 |
| Thread length mm | 190 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
