Hydraulic Top Link Knuckle Assembly (Cat. 2)
Part Number: S.10293Categories: PTO (shaft), Linkage
Part Number: S.10293
Grade: Replacement
Part Details

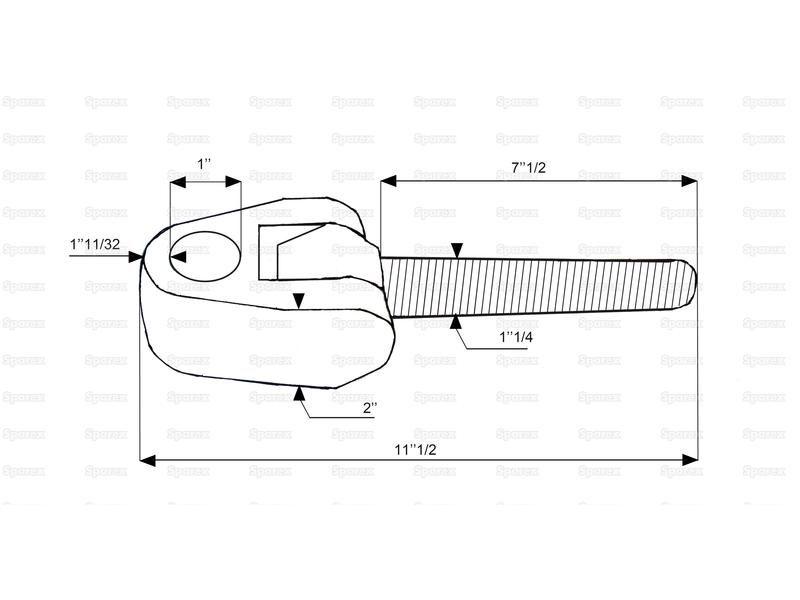

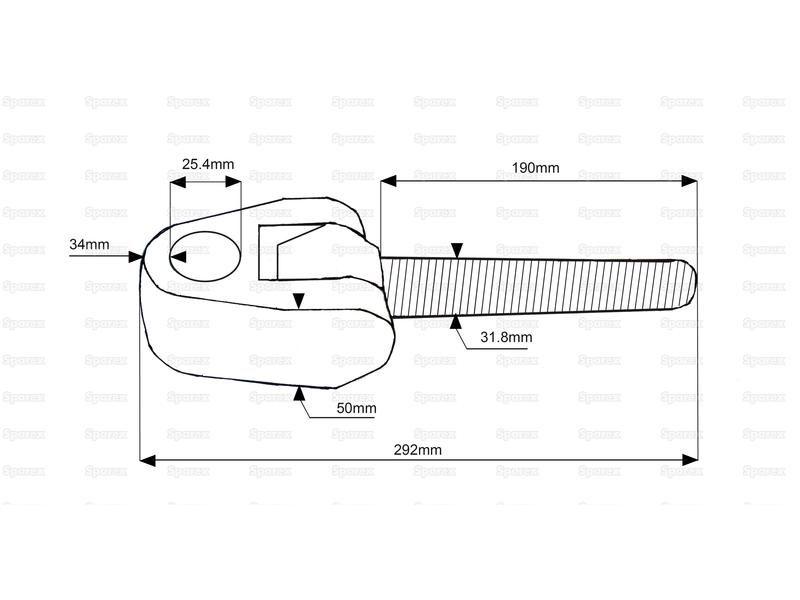

Hydraulic Top Link Knuckle Assembly (Cat. 2) Thread: 1 1/4" UNC.Cat.2 1'' pin hole.
Technical Information
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 3/8 |
| End Radius mm | 34 |
| Knuckle | S.10287 |
| Knuckle Bore Ø ins | 1 |
| Knuckle Bore Ø mm | 25.4 |
| Knuckle Width ins | 2 |
| Knuckle Width mm | 50.8 |
| Length ins | 11 1/2 |
| Length mm | 292 |
| LH or RH | RH |
| Related Products | 10287, 10291 |
| Spindle | S.10291 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/2 |
| Thread length mm | 190 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
