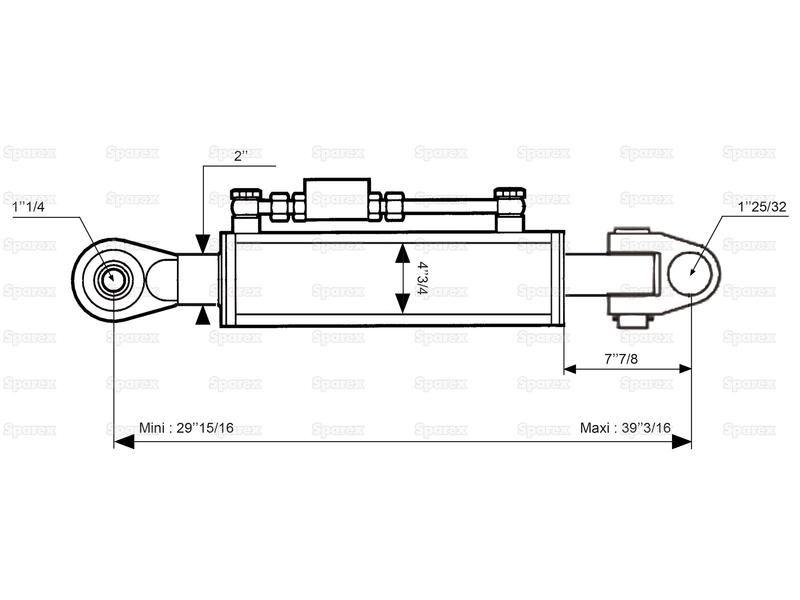

Hydraulic Top Link (Cat.4/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. for John Deere
Part Number: S.119716Categories: PTO (shaft), Linkage
Part Number: S.119716
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.4/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Technical Information
| A mm | 200 |
| Brand | Sparex |
| Category | 4/3 |
| Category Implement End | 3 |
| Category Tractor End | 4 |
| Check Valve Position | Top |
| Cylinder Bore mm | 120 |
| Implement End | Ball |
| Lift kgs @180 bar | 18600 |
| Maximum Length mm | 995 |
| Minimum Length mm | 760 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119707, 119708, 119709 |
| Rod Ø mm | 50 |
| Suitable for Tractors up to hp kW | 400hp (294kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 24600 |
| Tractor End | Knuckle |
Models
| John Deere |
|---|
| 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R, 8400R |
