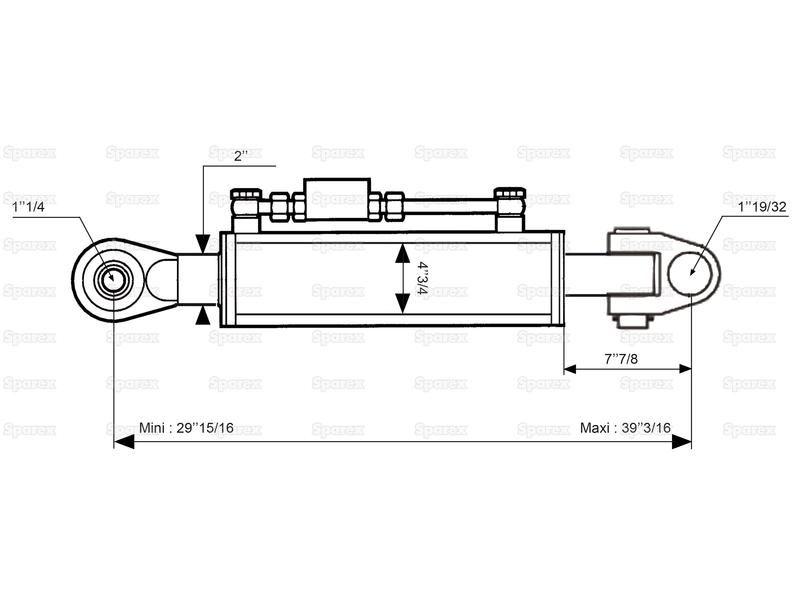

Hydraulic Top Link (Cat.40mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. for Fendt
Part Number: S.119715Categories: PTO (shaft), Linkage
Part Number: S.119715
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.40mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Technical Information
| A mm | 200 |
| Brand | Sparex |
| Category | 40mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 40mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 120 |
| Implement End | Ball |
| Lift kgs @180 bar | 18600 |
| Maximum Length mm | 995 |
| Minimum Length mm | 760 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119707, 119709, 164592 |
| Rod Ø mm | 50 |
| Suitable for Tractors up to hp kW | 400hp (294kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 24600 |
| Tractor End | Knuckle |
Models
| Fendt |
|---|
| 924 VARIO (924), 924 Vario (Favorit 900 Series), 924 VARIO SCR (941), 924 VARIO TIER III (941), 927 Vario (Favorit 900 Series), 927 VARIO S4 (950), 927 VARIO SCR (942), 927 VARIO TIER III (942), 930 VARIO (930), 930 Vario (Favorit 900 Series), 930 VARIO S4 (951), 930 VARIO SCR (943), 930 VARIO TIER III (943), 933 Vario (Favorit 900 Series), 933 VARIO SCR (944), 933 VARIO TIER III (944), 936 Vario (Favorit 900 Series), 936 VARIO S4 (953), 936 VARIO SCR (945), 936 VARIO TIER III (945), 938 MT, 939 VARIO, 939 VARIO S4 (954), 939 VARIO SCR (946), 940 MT, 943 MT |
