Hydraulic Top Link (Cat.36mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 690mm.
Part Number: S.399734Categories: PTO (shaft), Linkage
Part Number: S.399734
Grade: Replacement
Part Details

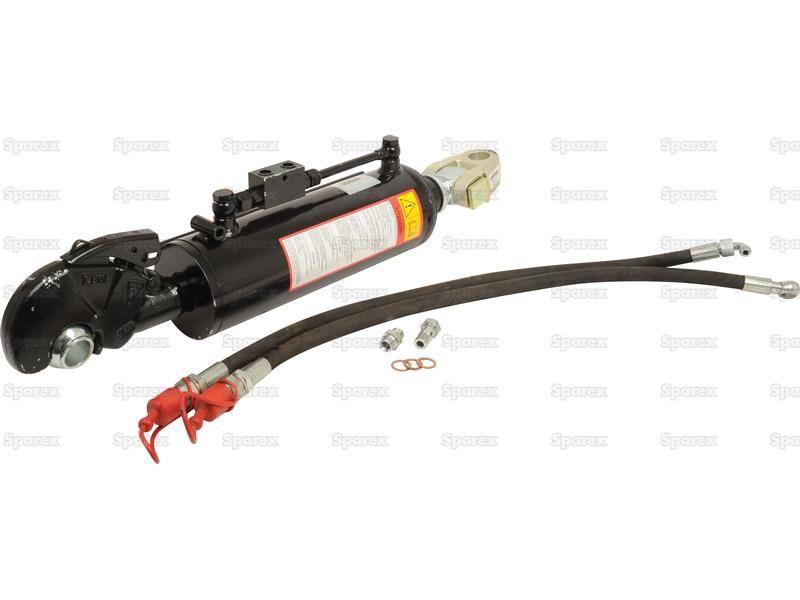

Hydraulic Top Link (Cat.36mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 690mm. Min. Length : 690mm, Max. Length : 956mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 36mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 36mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 90 |

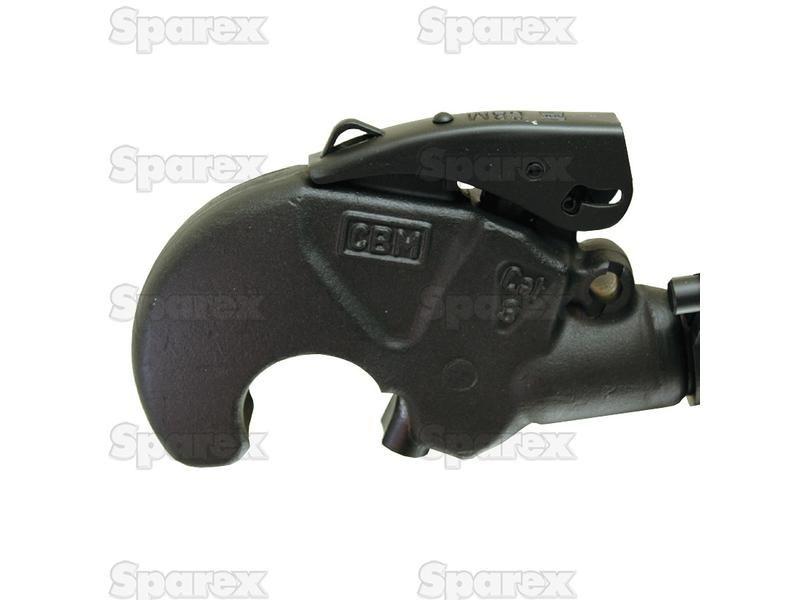

| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 8770 |
| Maximum Length mm | 956 |
| Minimum Length mm | 690 |
| Related Products | 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 200hp (147kW) |
| Supplied with | Hose set, chain & ball, marker label with knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 11700 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.56817 |
