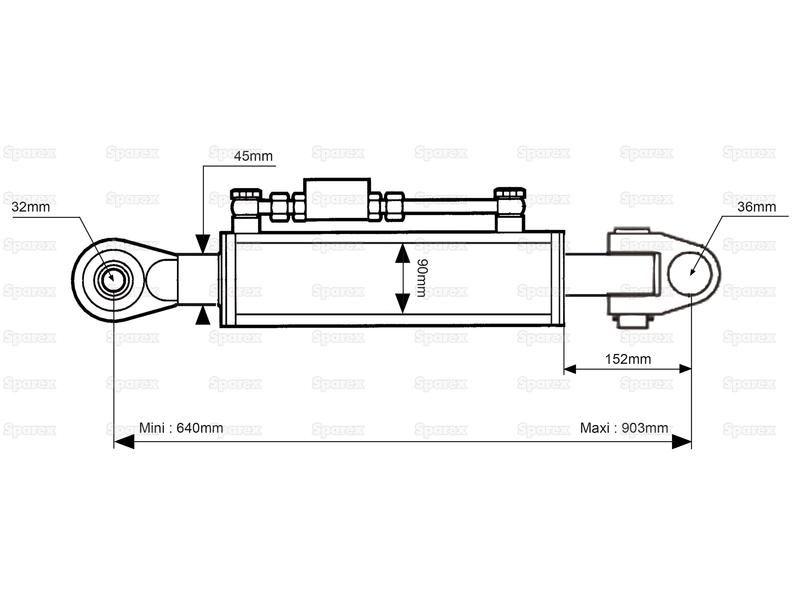

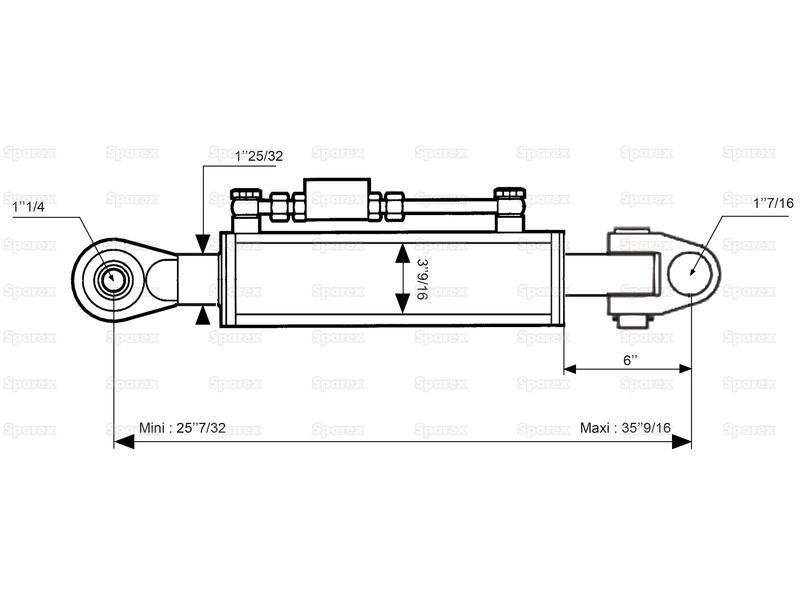

Hydraulic Top Link (Cat.36mm/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm.
Part Number: S.399994Categories: PTO (shaft), Linkage
Part Number: S.399994
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.36mm/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm. Min. Length : 640mm, Max. Length : 903mm, Supplied with : Hose Set.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 36mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 36mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 90 |
| Implement End | Ball |
| Lift kgs @180 bar | 8770 |
| Maximum Length mm | 903 |
| Minimum Length mm | 640 |
| Related Products | 10292, 32257, 33137, 56817 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 200hp (147kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 11700 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.56817 |
