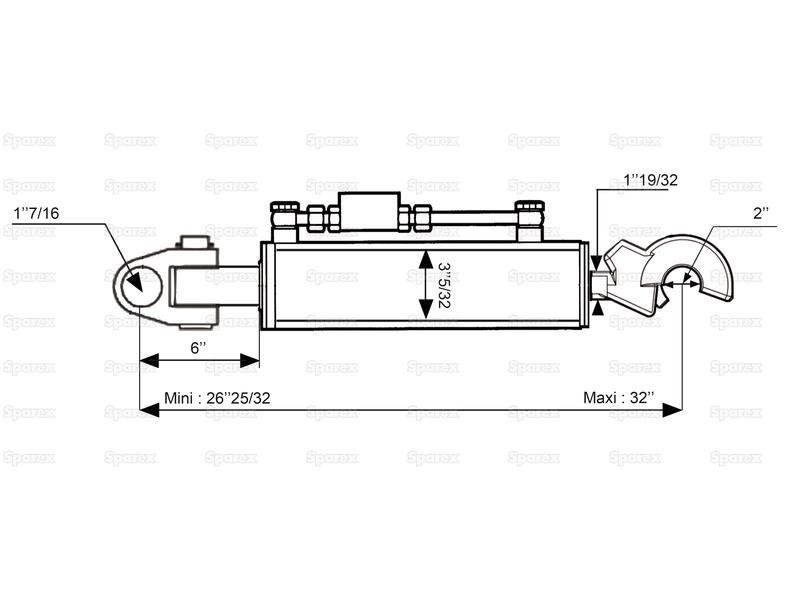

Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 680mm.
Part Number: S.399954 - Categories: PTO (shaft), Linkage
£418.82
per item, including UK VAT and delivery
Part Number: S.399954
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 680mm. Min. Length : 680mm, Max. Length : 965mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 36mm/2 |
| Category Implement End | 2 |
| Category Tractor End | 36mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 6930 |
| Maximum Length mm | 965 |
| Minimum Length mm | 680 |
| Related Products | 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label with knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.56817 |
