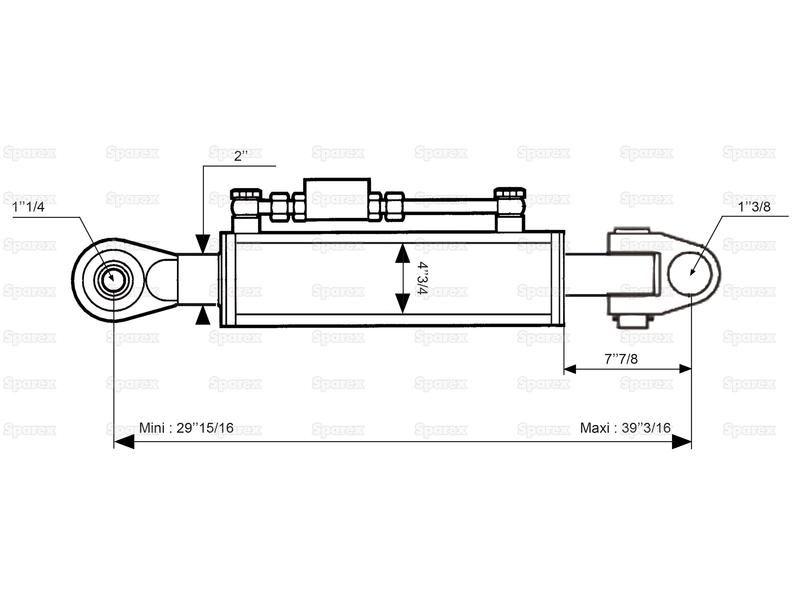

Hydraulic Top Link (Cat.35mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. for John Deere
Part Number: S.119713Categories: PTO (shaft), Linkage
Part Number: S.119713
Grade: Replacement
Part Details

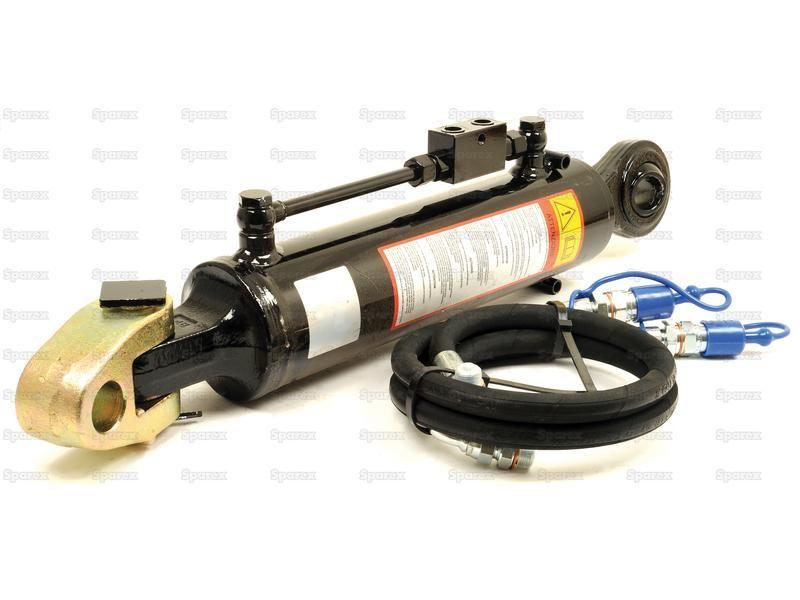

Hydraulic Top Link (Cat.35mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Technical Information
| A mm | 200 |
| Brand | Sparex |
| Category | 35mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 35mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 120 |
| Implement End | Ball |
| Lift kgs @180 bar | 18600 |
| Maximum Length mm | 995 |
| Minimum Length mm | 760 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119705, 119709 |
| Rod Ø mm | 50 |
| Suitable for Tractors up to hp kW | 400hp (294kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 24600 |
| Tractor End | Knuckle |
Models
| John Deere |
|---|
| 8100 (8000 Series), 8200 (8000 Series), 8300 (8000 Series), 8400 (8000 Series) |
