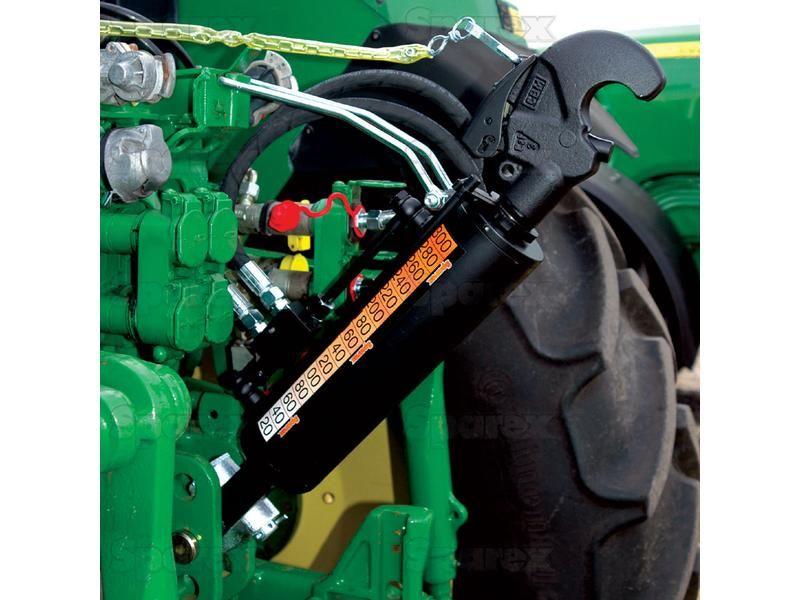

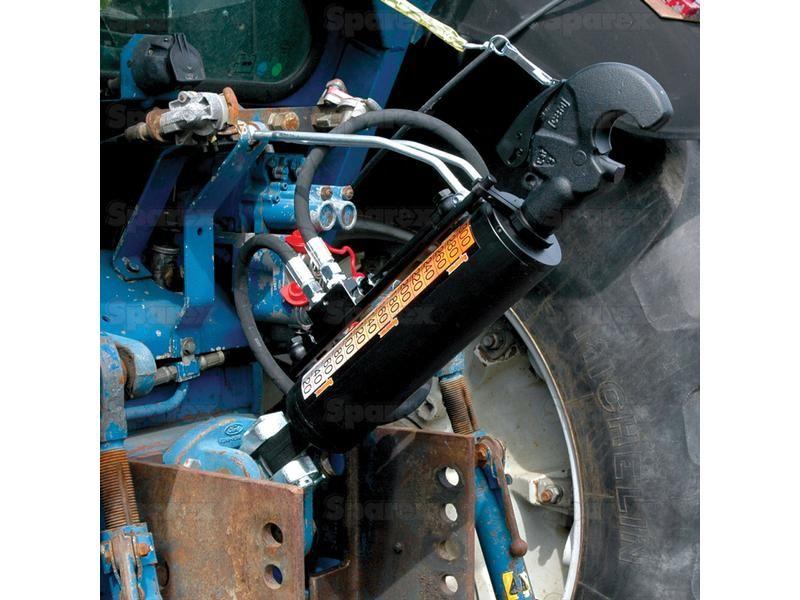

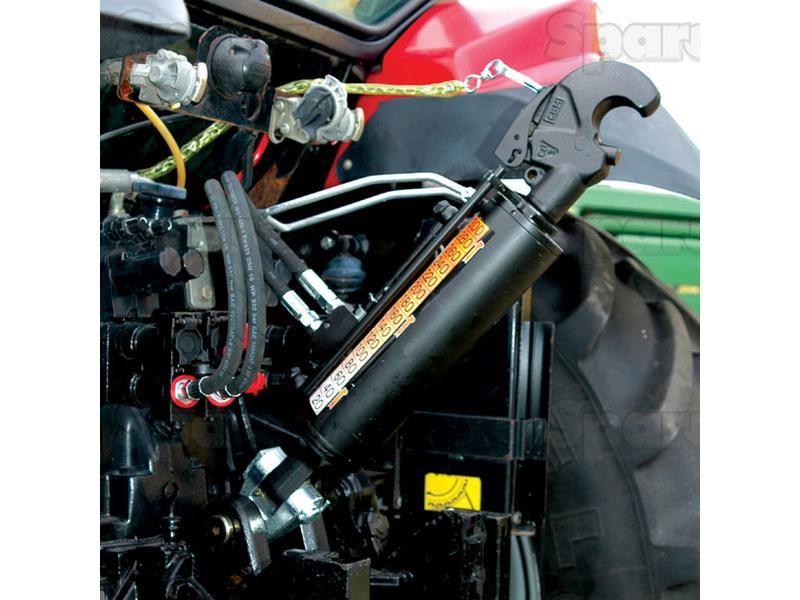

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson

Part Number: S.331201Categories: PTO (shaft), Linkage
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson

Part Number: S.331201

Grade: Replacement

Part Details

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. Min. Length : 650mm, Max. Length : 876mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.

Technical Information

A mm 152
Brand Sparex
Category 3/3
Category Implement End 3
Category Tractor End 3
Check Valve Position Top
Cylinder Bore mm 90

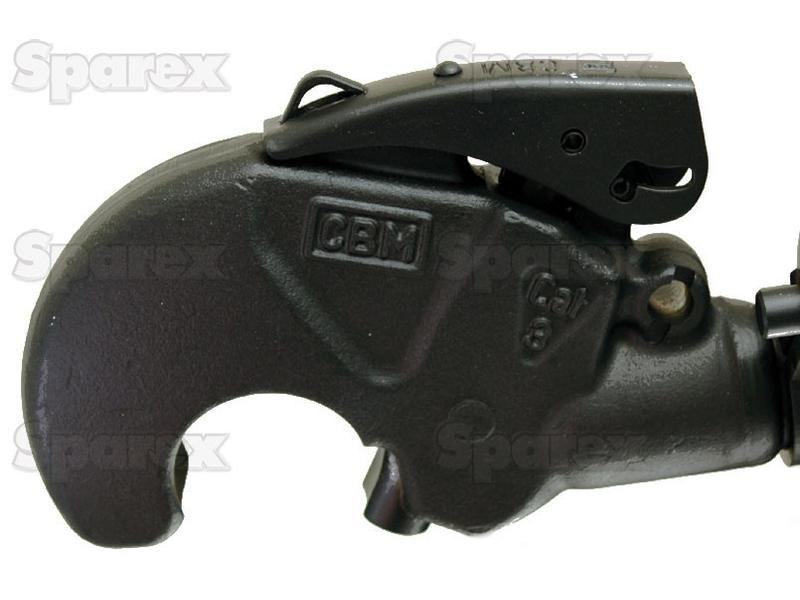

Implement End Q.R CBM Hook
Lift kgs @180 bar 8770
Maximum Length mm 876
Minimum Length mm 650
Related Products 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
Rod Ø mm 45
Suitable for Tractors up to hp kW 200hp (147kW)
Supplied with Hose set, chain & ball, marker label with knuckle & pin
Tariff Code 8412212000
Thrust kgs @180 bar 11700

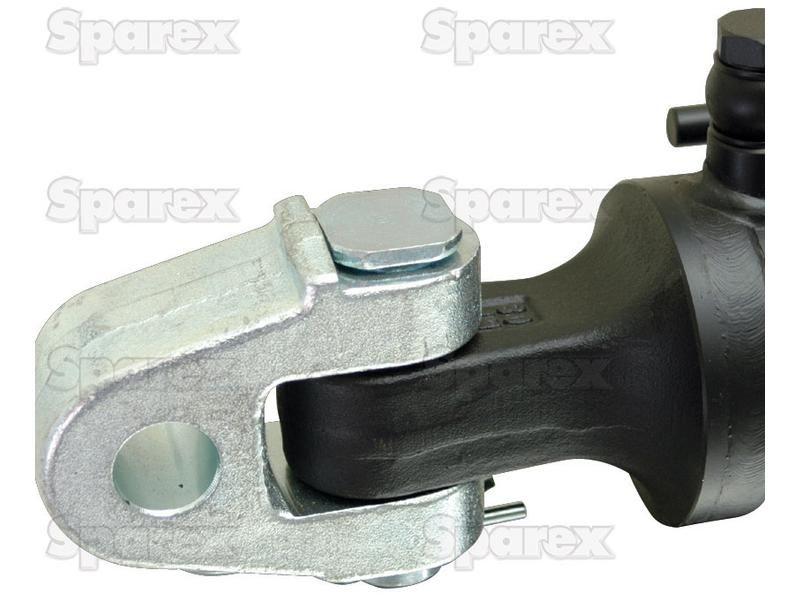

Tractor End Knuckle
Tractor End Fixing S.10288

Models

Massey Ferguson
6614 DYNA VT, 6615 DYNA VT, 6616 DYNA VT, 6713 S DYNA VT, 6714 S DYNA VT, 6715 S DYNA VT, 6716 S DYNA VT, 6718 S DYNA VT, 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7490 (7400 Series), 7495 (7400 Series), 7497, 7499, 7615 DYNA VT/DYNA STEP, 7616 DYNA VT/DYNA STEP, 7618 DYNA VT/DYNA STEP, 7619 DYNA 6, 7619 DYNA VT, 7620 DYNA 6, 7620 DYNA VT, 7622 DYNA 6, 7622 DYNA VT, 7624 DYNA 6, 7624 DYNA VT, 7626 DYNA 6, 7719 DYNA 6, 7719 S DYNA VT, 7720 DYNA VT, 7720 S DYNA 6, 7720 S DYNA VT, 7722 DYNA VT, 7722 S DYNA 6, 7722 S DYNA VT, 7724 DYNA VT, 7724 S DYNA 6, 7724 S DYNA VT, 7726 DYNA VT, 7726 S DYNA 6, 7726 S DYNA VT

Manufacturer Part Numbers

Fendt
G350870200250, G712870051021, G712870051022, G737870051020
Massey Ferguson
3788395M92, 4354560M91, 4354560M92
Valmet & Valtra
ACV010922A
