Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. for John Deere
Part Number: S.399891Categories: PTO (shaft), Linkage
Part Number: S.399891
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. Min. Length : 565mm, Max. Length : 706mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 90 |

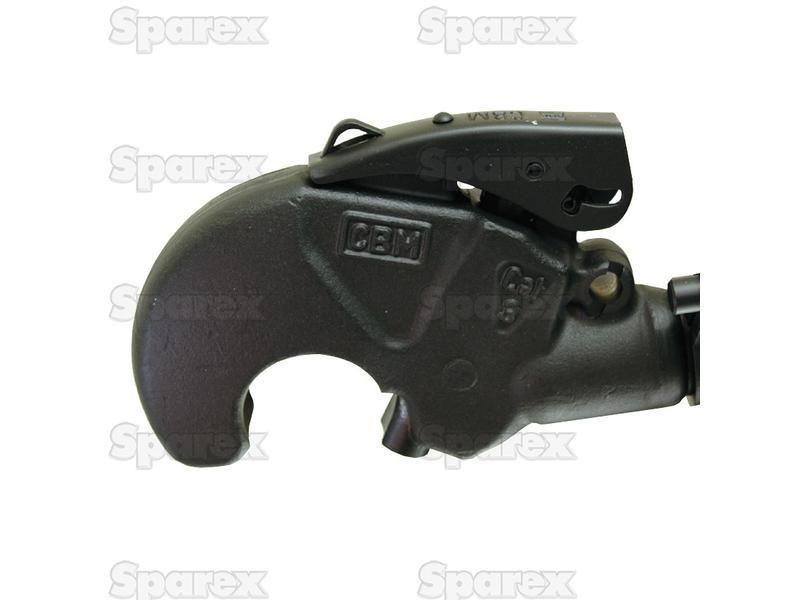

| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 8770 |
| Maximum Length mm | 706 |
| Minimum Length mm | 565 |
| Related Products | 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 200hp (147kW) |
| Supplied with | Hose set, chain & ball, marker label with knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 11700 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.10288 |
Models
| John Deere |
|---|
| 6115D, 6130 (6030 Standard Series ), 6230 (6030 Standard Series ), 6320 (6020 Series), 6330 (6030 Standard Series ), 6400 (6000 Series), 6410 (6010 Series), 6430 (6030 Standard Series ), 6500 (Self Propelled Sprayers - 6000 Series), 6510 (6010 Series), 6530 (6030 Standard Series ), 6534, 6600 (6000 Series), 6610 (6010 Series), 6620 (6020 Series), 6630 (6030 Standard Series ) |
