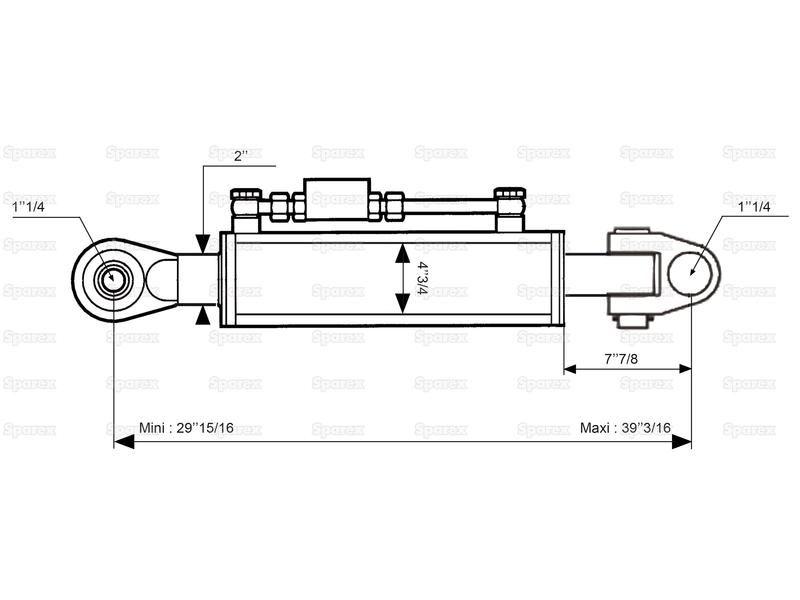

Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. for Massey Ferguson
Part Number: S.119712Categories: PTO (shaft), Linkage
Part Number: S.119712
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Technical Information
| A mm | 200 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 120 |
| Implement End | Ball |
| Lift kgs @180 bar | 18600 |
| Maximum Length mm | 995 |
| Minimum Length mm | 760 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119704, 119709, 164592 |
| Rod Ø mm | 50 |
| Suitable for Tractors up to hp kW | 400hp (294kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 24600 |
| Tractor End | Knuckle |
Models
| Massey Ferguson |
|---|
| 8450 (8400 Series), 8460 (8400 Series), 8470 (8400 Series), 8480 (8400 Series), 8650, 8660, 8670, 8680, 8690 (8600 Series), 8727, 8727 S, 8730, 8730 S, 8732, 8732 S, 8735, 8735 S, 8737, 8737 S, 8740, 8740 S |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 4295829M91 |
