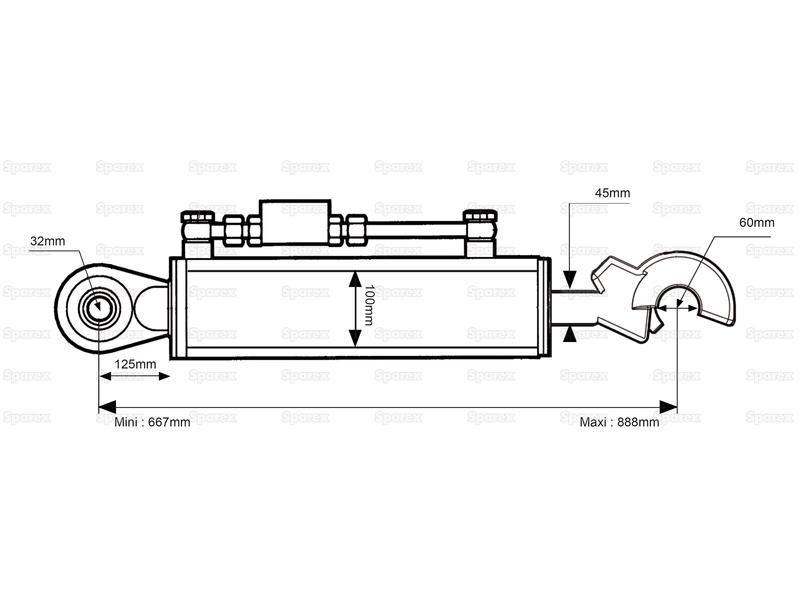

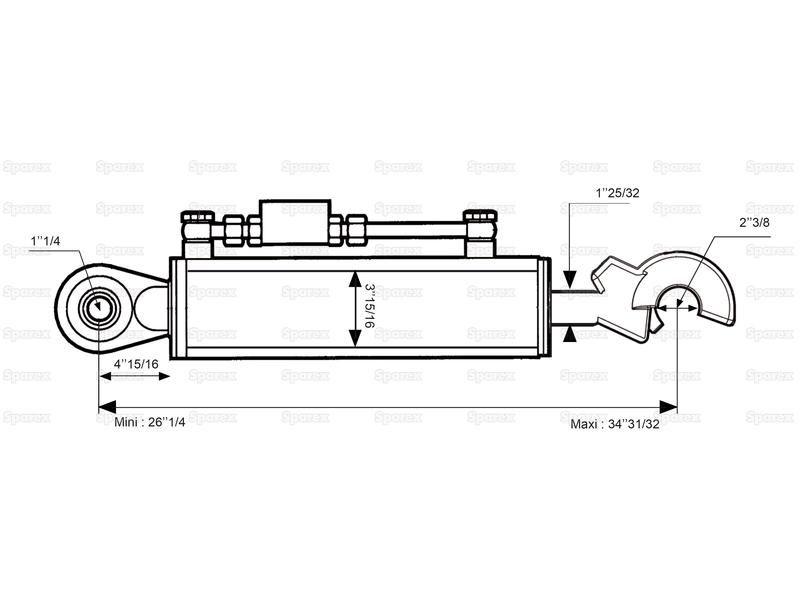

Hydraulic Top Link (Cat.3/3) Ball and Q.R CBM Hook, Cylinder Bore: 100mm, Min. Length : 667mm.
Part Number: S.331356Categories: PTO (shaft), Linkage
Part Number: S.331356
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.3/3) Ball and Q.R CBM Hook, Cylinder Bore: 100mm, Min. Length : 667mm. Min. Length : 667mm, Max. Length : 888mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 125 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 100 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 11520 |
| Maximum Length mm | 888 |
| Minimum Length mm | 667 |
| Related Products | 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 250hp (184kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 14440 |
| Tractor End | Ball |
| Tractor End Fixing | S.32951 |
