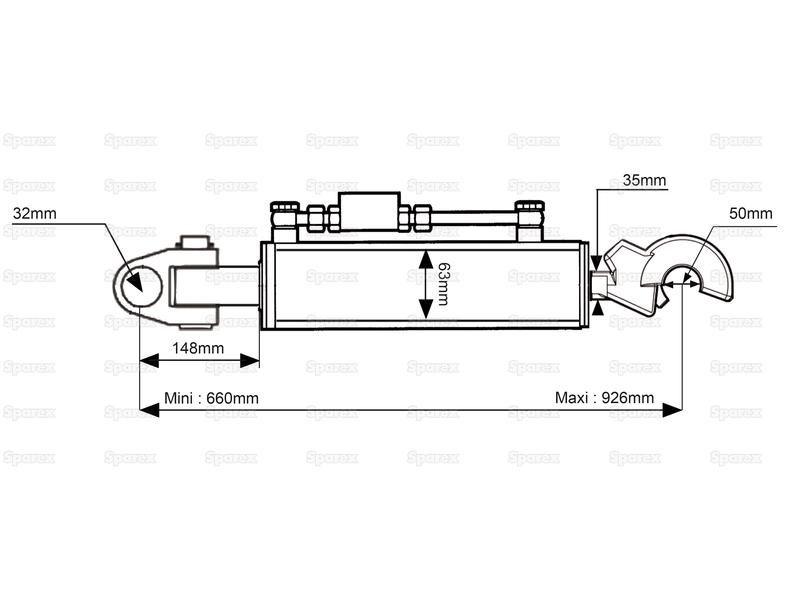

Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 660mm.
Part Number: S.399862Categories: PTO (shaft), Linkage
Part Number: S.399862
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 660mm. Min. Length : 660mm, Max. Length : 926mm, Supplied with : Hose set, chain & ball, marker label with threaded rod, knuckle & pin.
Technical Information
| A mm | 148 |
| Brand | Sparex |
| Category | 3/2 |
| Category Implement End | 2 |
| Category Tractor End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 63 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 926 |
| Minimum Length mm | 660 |
| Related Products | 10288, 10292, 32253, 32946, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose set, chain & ball, marker label with threaded rod, knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.10288 |
