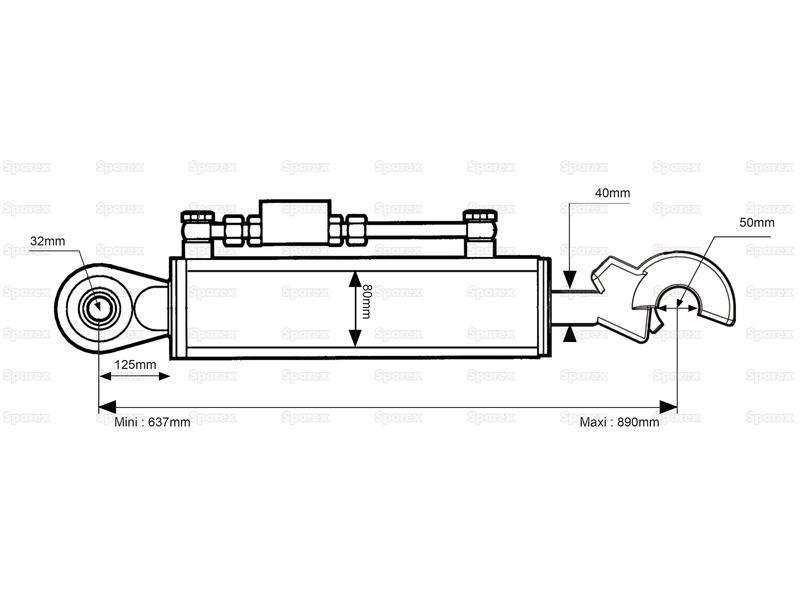

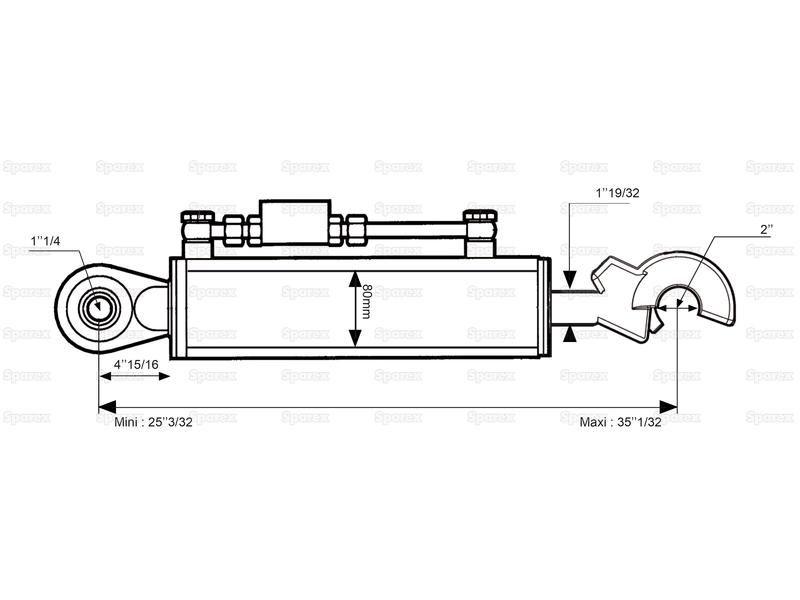

Hydraulic Top Link (Cat.3/2) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 637mm.
Part Number: S.399876Categories: PTO (shaft), Linkage
Part Number: S.399876
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.3/2) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 637mm. Min. Length : 637mm, Max. Length : 890mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 125 |
| Brand | Sparex |
| Category | 3/2 |
| Category Implement End | 2 |
| Category Tractor End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 6930 |
| Maximum Length mm | 890 |
| Minimum Length mm | 637 |
| Related Products | 32255, 32951, 32977, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
| Tractor End | Ball |
| Tractor End Fixing | S.32951 |
