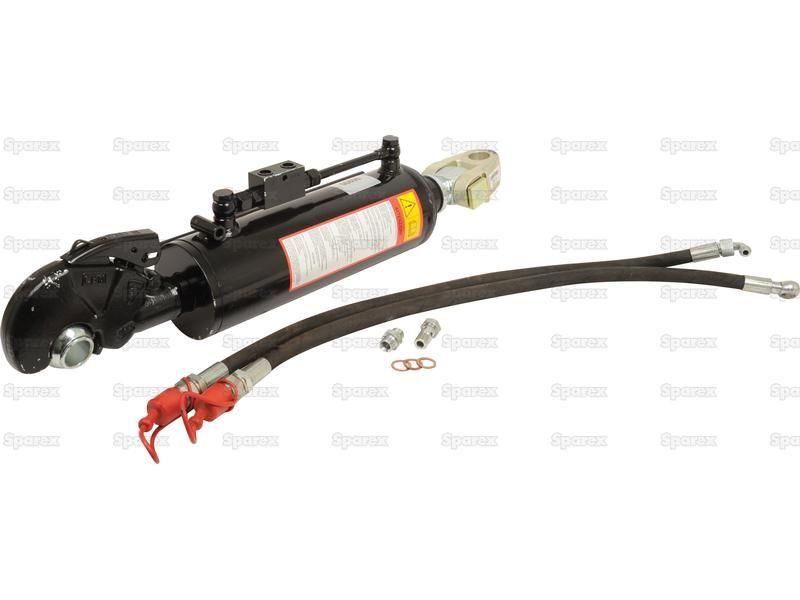

Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 695mm.
Part Number: S.399713Categories: PTO (shaft), Linkage
Part Number: S.399713
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 695mm. Min. Length : 695mm, Max. Length : 965mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 28mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 28mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |

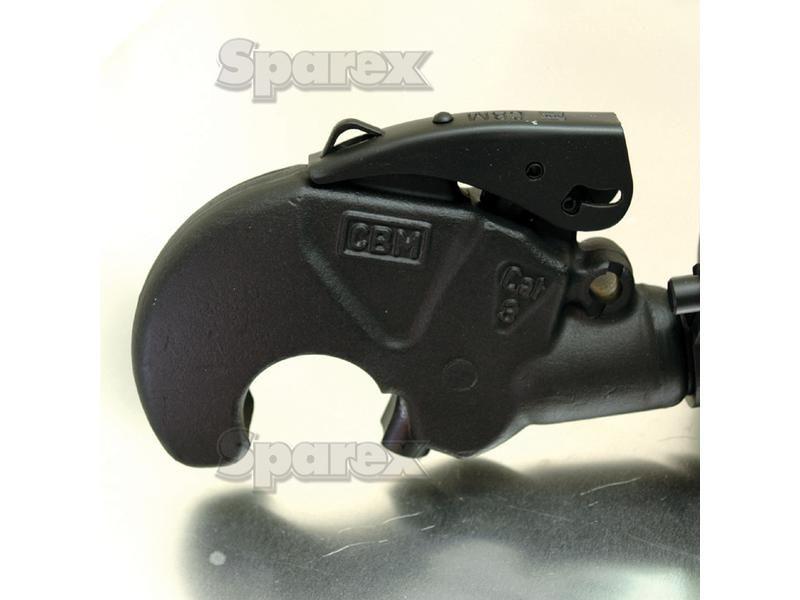

| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 6930 |
| Maximum Length mm | 965 |
| Minimum Length mm | 695 |
| Related Products | 10289, 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label with knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.10289 |
