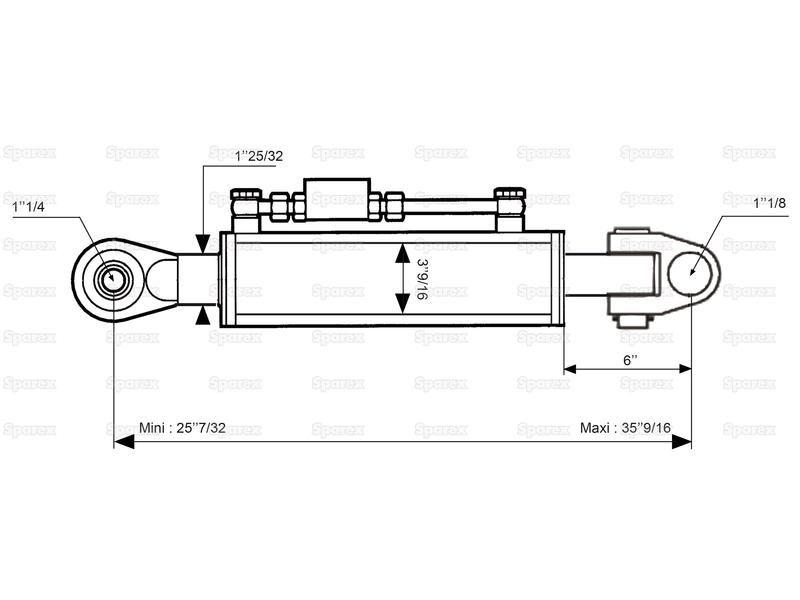

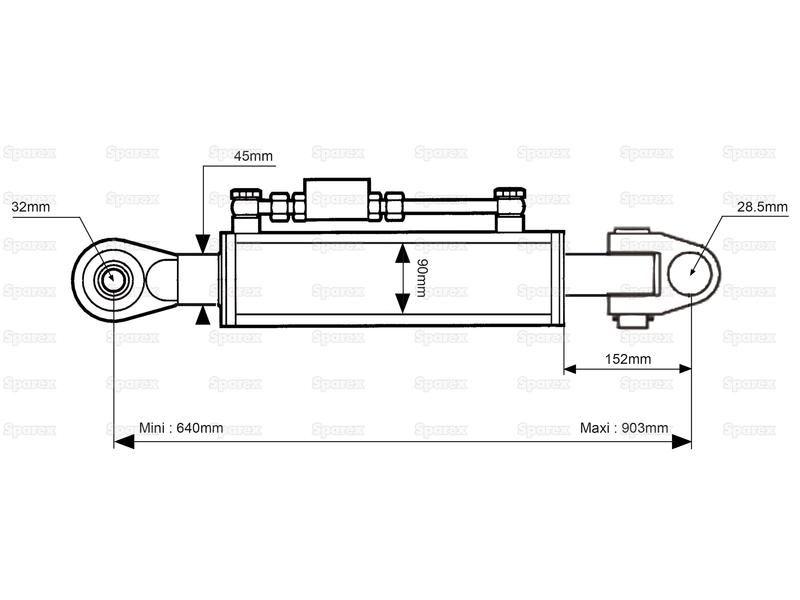

Hydraulic Top Link (Cat.28mm/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm. for Case IH, Ford New Holland
Part Number: S.399993Categories: PTO (shaft), Linkage
Part Number: S.399993
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.28mm/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm. Min. Length : 640mm, Max. Length : 903mm, Supplied with : Hose Set.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 28mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 28mm |
| Check Valve Position | Top |
| Cylinder Bore mm | 90 |
| Implement End | Ball |
| Lift kgs @180 bar | 8770 |
| Maximum Length mm | 903 |
| Minimum Length mm | 640 |
| Related Products | 10289, 10292, 32257, 33137 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 200hp (147kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 11700 |
| Tractor End | Knuckle |
| Tractor End Fixing | S.10289 |
Models
| Case IH |
|---|
| Maxxum 100 (Maxxum Series), Maxxum 110 (Maxxum Series), Maxxum 115 (Maxxum Series), Maxxum 120 (Maxxum Series), Maxxum 125 (Maxxum Series), Maxxum 130 (Maxxum Series), MAXXUM 140, Puma 125 (Puma Series), Puma 130 (Puma Series), Puma 140 (Puma Series), Puma 145 (Puma Series), Puma 155 (Puma Series), PUMA 160, Puma 165 (Puma Series) |
| Ford New Holland |
| T6.120 (T6 Series), T6.125, T6.140 (T6 Series), T6.150 (T6 Series), T6.155 (T6 Series), T6.160 (T6 Series), T6.165 (T6 Series), T6.175 (T6 Series), T6.180, T6010 (T6000 Series), T6020 (T6000 Series), T6030 (T6000 Series), T6040 (T6000 Series), T6050 (T6000 Series), T6060 (T6000 Series), T6070 (T6000 Series), T6080 (T6000 Series), T6090 (T6000 Series) |
