Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. for Massey Ferguson, Valmet & Valtra, Claas
Part Number: S.331202Categories: PTO (shaft), Linkage
Part Number: S.331202
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 650mm. Min. Length : 650mm, Max. Length : 876mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Technical Information
| A mm | 152 |
| Brand | Sparex |
| Category | 2/3 |
| Category Implement End | 3 |
| Category Tractor End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 90 |

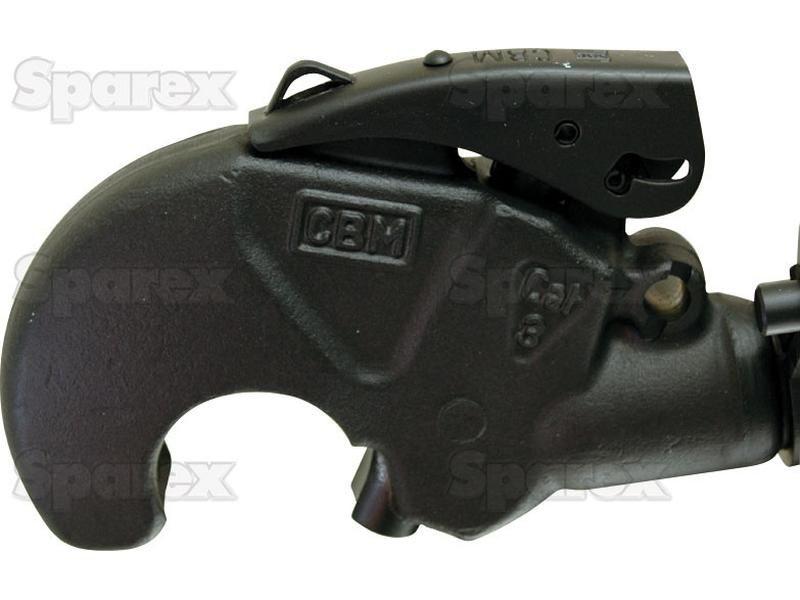

| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 8770 |

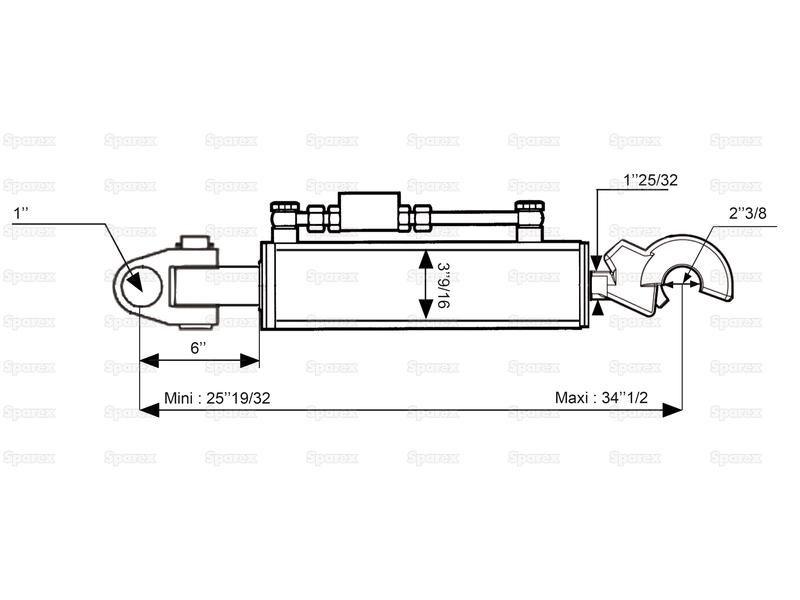

| Maximum Length mm | 876 |
| Minimum Length mm | 650 |
| Related Products | 10287, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197 |
| Rod Ø mm | 45 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label with knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 11700 |

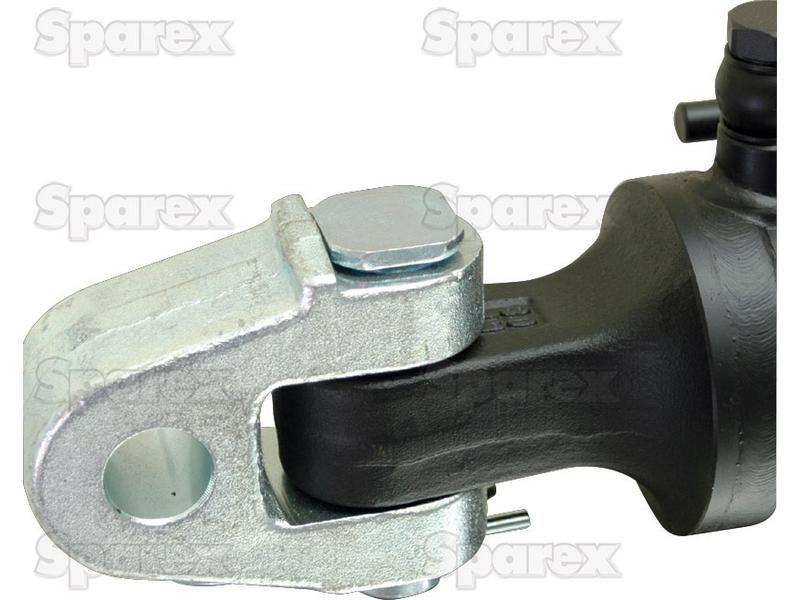

| Tractor End | Knuckle |
| Tractor End Fixing | S.10287 |
Models
| Claas |
|---|
| ARION 410, ARION 420, ARION 430, ARION 440, ARION 450, ARION 460, ARION 510, ARION 520, ARION 530, ARION 540, ARION 550, ARION 610, ARION 620, ARION 630, ARION 640, ARION 650, ARION 660 |
| Massey Ferguson |
| 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6615 DYNA 4, 6615 DYNA 6, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6714 S DYNA 4, 6714 S DYNA 6, 6715 S DYNA 4, 6715 S DYNA 6, 6716 S DYNA 6, 6718 S DYNA 6, 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7616 DYNA 6, 7618 DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 DYNA 6, 7715 S DYNA 4, 7715 S DYNA 6, 7716 DYNA 6, 7716 S DYNA 6, 7718 DYNA 6, 7718 S DYNA 6 |
| Valmet & Valtra |
| N101 (N Series), N101 CLASSIC, N101 HITECH, N103, N103 HITECH, N103.4 HITECH, N103.4 HITECH 5, N111 (N Series), N111 HITECH, N111C (N Series), N111EH (N Series), N111ELS (N Series), N111H (N Series), N113, N121 (N Series), N121 HITECH, N121LS (N Series), N123 HITECH, N123 HITECH 3, N123 VERSU, N141 (N Series), N141 HITECH, N141LS (N Series), N142, N142 DIRECT, N142 VERSU, N143 HITECH 3, N143 VERSU, N143D, N163 VERSU, N163D, N91 (N Series), N91C (N Series), N91H (N Series), N93, T121, T121 HITECH, T131, T131 HITECH, T131C (T1 Series), T131H (T1 Series), T132, T132 DIRECT, T132 Versu (T2 Series), T133, T133H, T151, T152, T152 DIRECT, T152 Versu (T2 Series), T153, T153 HITECH, T153 VERSU, T153D, T161, T161 HITECH, T162, T162 DIRECT, T162EV (T2 Series), T163ED, T163EV, T171, T171 HITECH, T172, T172 DIRECT, T172 Versu (T2 Series), T173 HITECH, T182, T182 DIRECT, T182 Versu (T2 Series), T183 VERSU, T183D, T191, T191 HITECH, T193, T202, T202 DIRECT, T202 Versu (T2 Series), T203D, T213 VERSU |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 4307464M91, 4377215M91 |
| Valmet & Valtra |
| V32678810, V32678910, V37100720 |
