Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 500mm. for Massey Ferguson
Part Number: S.399791Categories: PTO (shaft), Linkage
Part Number: S.399791
Grade: Replacement
Part Details

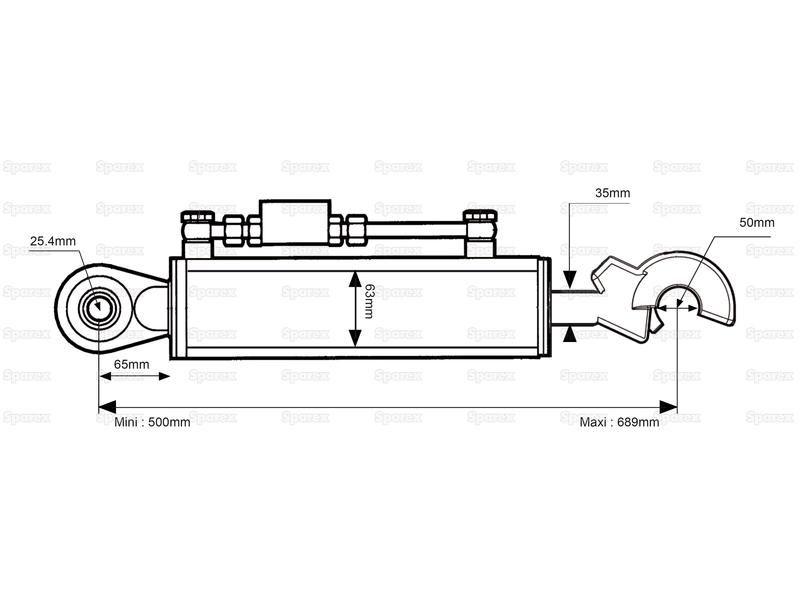

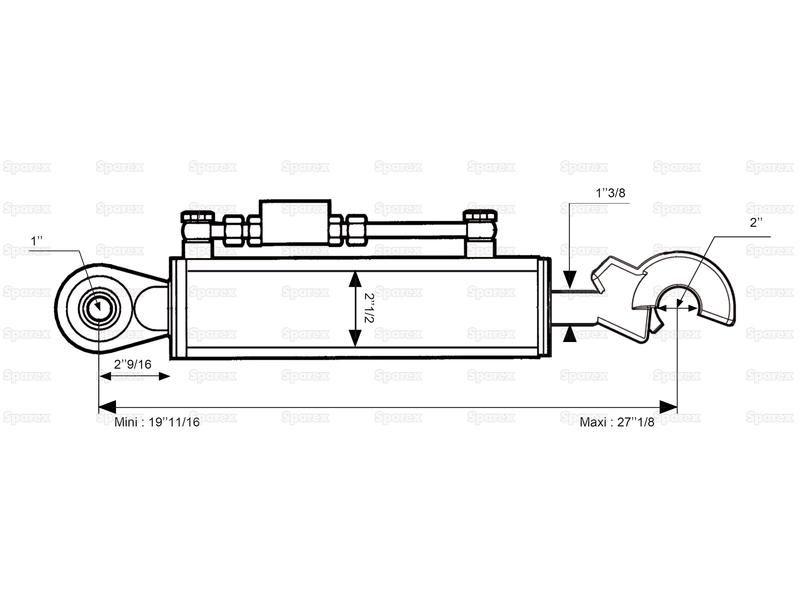

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 500mm. Min. Length : 500mm, Max. Length : 689mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 65 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Side |
| Cylinder Bore mm | 63 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 689 |
| Minimum Length mm | 500 |
| Related Products | 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
Models
| Massey Ferguson |
|---|
| 3625, 3630 (3600 Series), 3635 (3600 Series), 3640, 3645 (3600 Series), 3650 (3600 Series), 3655 (3600 Series), 3660 (3600 Series), 3707, 3708, 3709, 3710 |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| VA386394, VA386569 |
