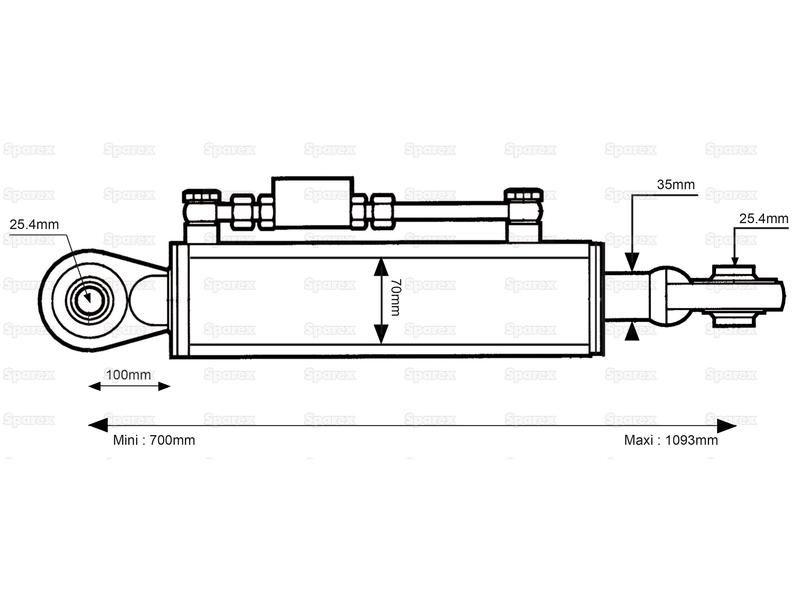

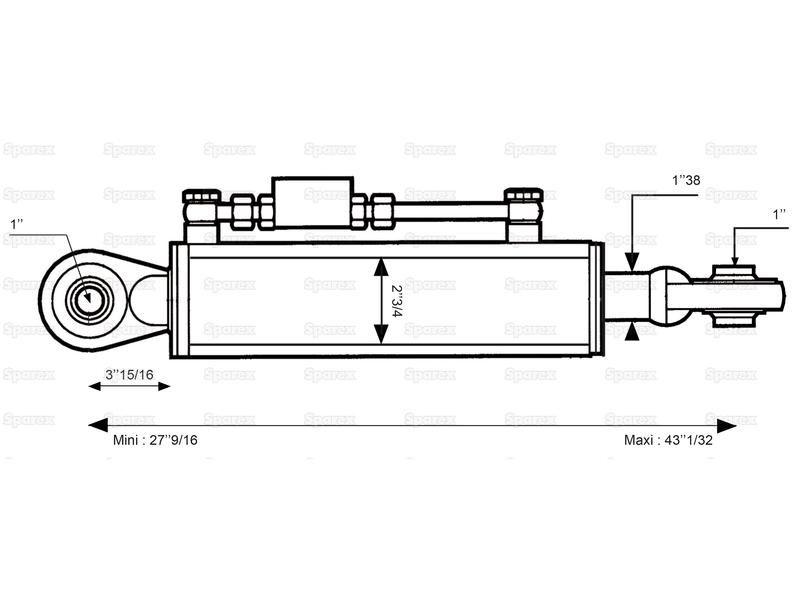

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 700mm. for Case IH, Ford New Holland
Part Number: S.331011Categories: PTO (shaft), Linkage
Part Number: S.331011
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 700mm. Min. Length : 700mm, Max. Length : 1093mm, Supplied with : Hose Set.
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 70 |
| Implement End | Ball |
| Lift kgs @180 bar | 5310 |
| Maximum Length mm | 1093 |
| Minimum Length mm | 700 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 150hp (110kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 7080 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
Models
| Case IH |
|---|
| FARMALL 105A, FARMALL 115A, FARMALL 85A, FARMALL 95A |
| Ford New Holland |
| TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050 |
