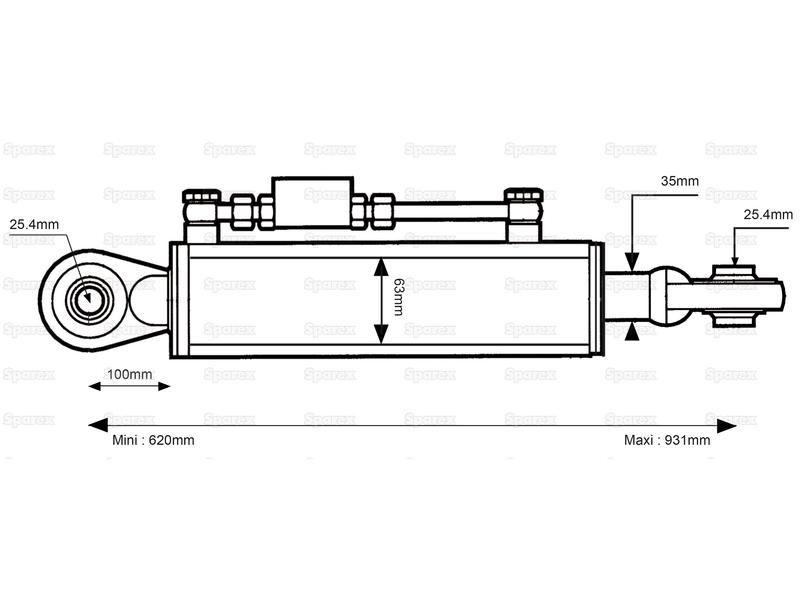

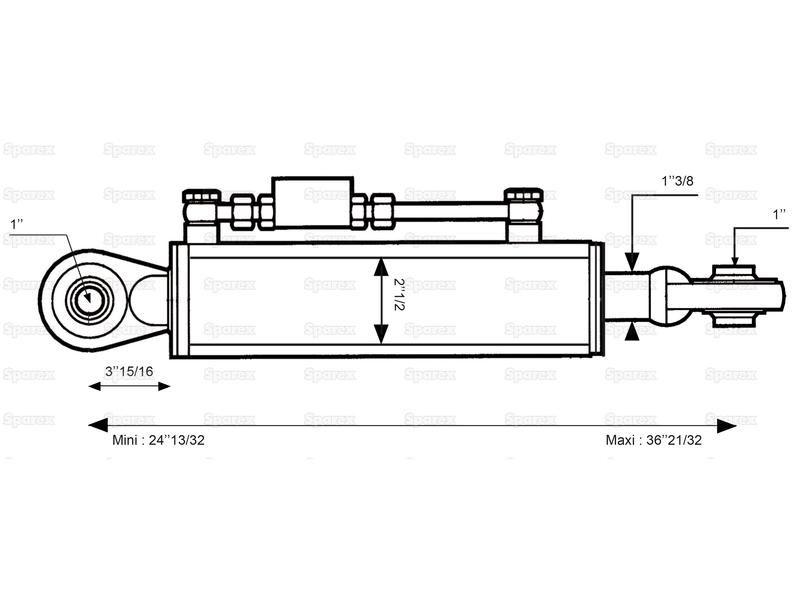

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 620mm. for Massey Ferguson
Part Number: S.331261Categories: PTO (shaft), Linkage
Part Number: S.331261
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 620mm. Min. Length : 620mm, Max. Length : 931mm, Supplied with : Hose Set.
Technical Information
| A mm | 100 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 63 |
| Implement End | Ball |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 931 |
| Minimum Length mm | 620 |
| Related Products | 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose Set |
| Tariff Code | 8413910090 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Ball |
| Tractor End Fixing | Fixed |
Models
| Massey Ferguson |
|---|
| 4707, 4708, 4709 |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 4305979M92, 4311029M1, 4364607M2 |
| Valmet & Valtra |
| 4305979M91, 4312426M92 |
