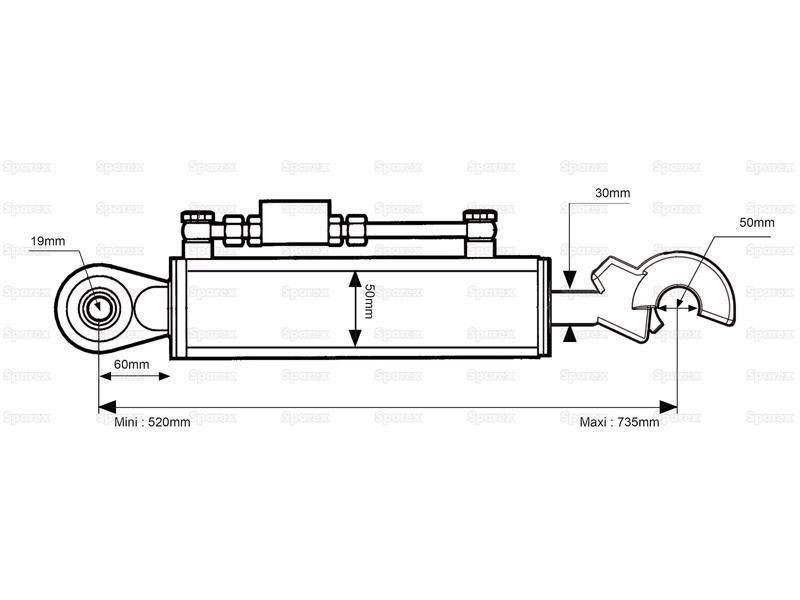

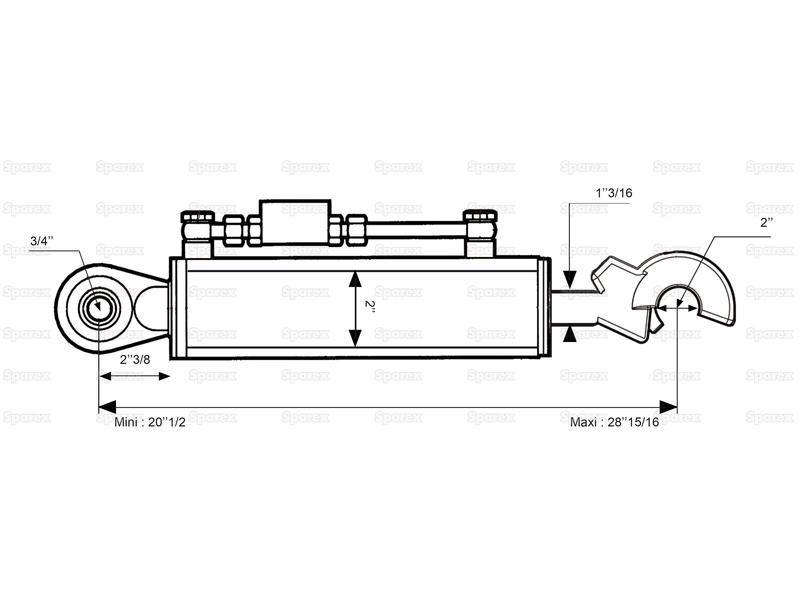

Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 50mm, Min. Length : 520mm.
Part Number: S.399781Categories: PTO (shaft), Linkage
Part Number: S.399781
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 50mm, Min. Length : 520mm. Min. Length : 520mm, Max. Length : 735mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 60 |
| Brand | Sparex |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Check Valve Position | Side |
| Cylinder Bore mm | 50 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 2300 |
| Maximum Length mm | 735 |
| Minimum Length mm | 520 |
| Related Products | 32251, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 30 |
| Suitable for Tractors up to hp kW | 60hp (45kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 3600 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
