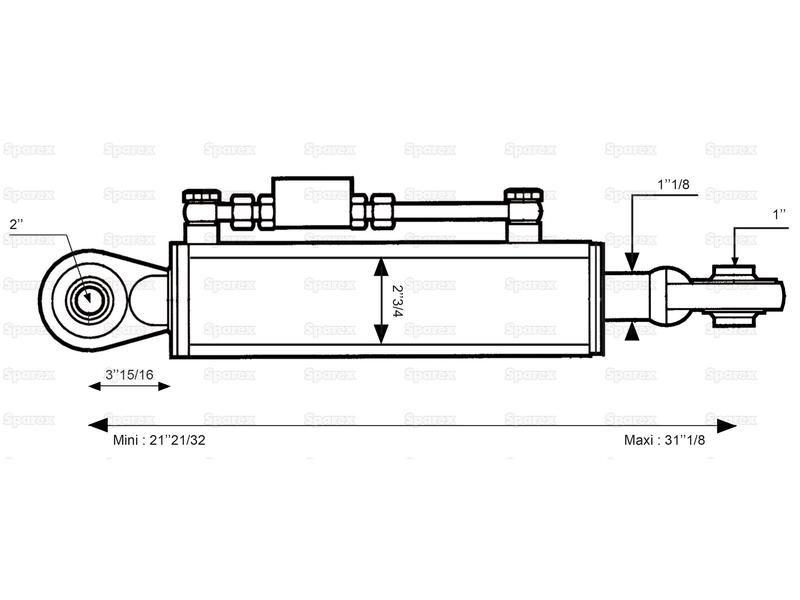

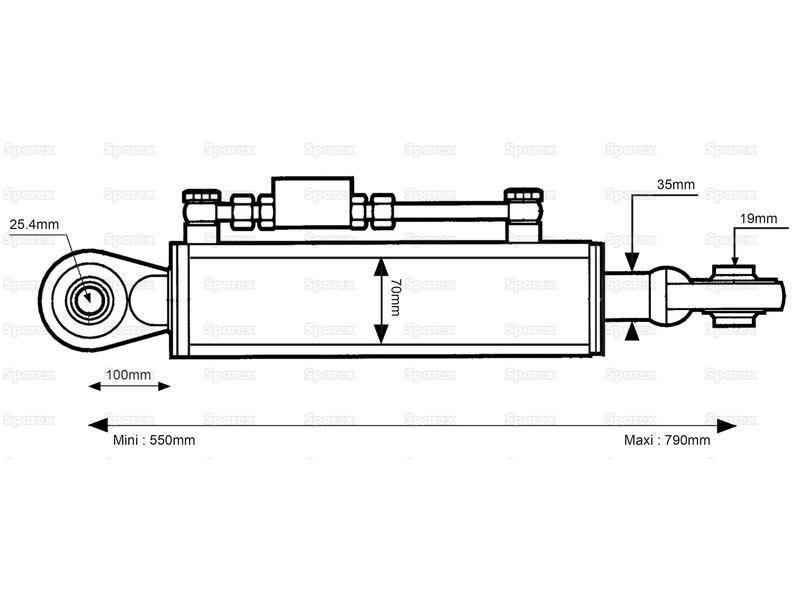

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 550mm. for Ford New Holland
Part Number: S.331081Categories: PTO (shaft), Linkage
Part Number: S.331081
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 550mm. Min. Length : 550mm, Max. Length : 790mm, Supplied with : Hose Set.
Technical Information
| Brand | Sparex |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Check Valve Position | Top |
| Cylinder Bore mm | 70 |
| Implement End | Ball |
| Lift kgs @180 bar | 5310 |
| Maximum Length mm | 790 |
| Minimum Length mm | 550 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 150hp (110kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 7080 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
Models
| Ford New Holland |
|---|
| TK4020, TK4030 (TK Series - Crawlers), TK4040, TK4050, TK4060 |
