Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 610mm. for Case IH, Ford New Holland
Part Number: S.331041Categories: PTO (shaft), Linkage
Part Number: S.331041
Grade: Replacement
Part Details

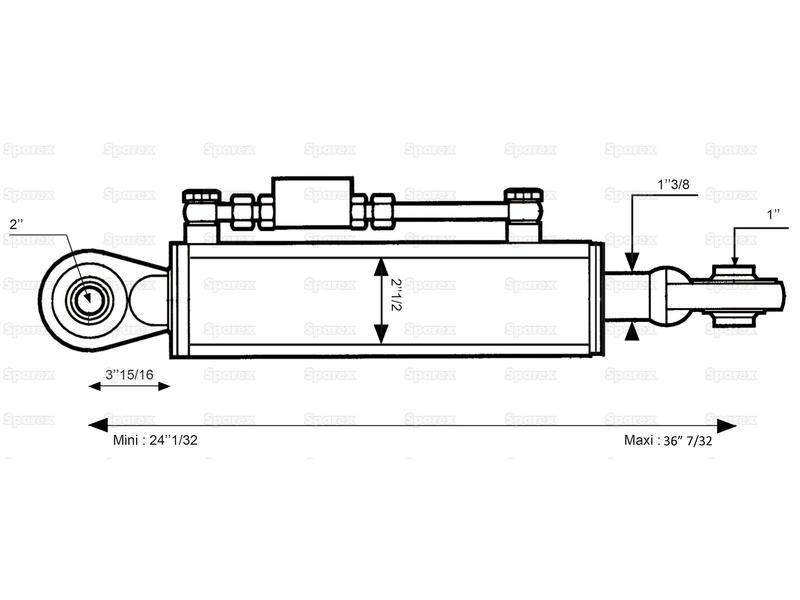

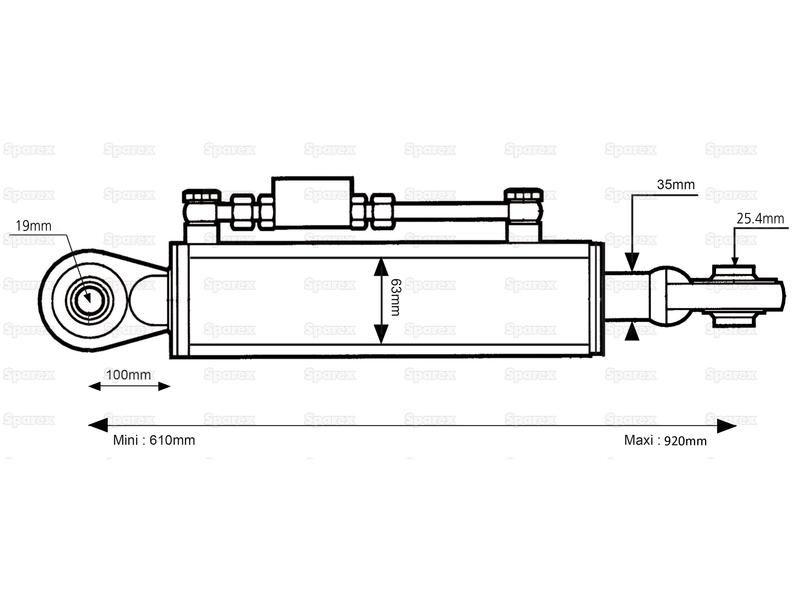

Hydraulic Top Link (Cat.1/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 610mm. Min. Length : 610mm, Max. Length : 920mm, Supplied with : Hose Set.
Technical Information
| Brand | Sparex |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Check Valve Position | Top |
| Cylinder Bore mm | 63 |
| Implement End | Ball |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 920 |
| Minimum Length mm | 610 |
| Related Products | 32253, 33137, 33144, 33158, 39965, 39966, 39967, 39968 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
Models
| Case IH |
|---|
| FARMALL 55C, FARMALL 65C, FARMALL 75C |
| Ford New Holland |
| T3.50F, T3.55F, T3.60F, T3.65F, T3.70F, T3.75F, T3.80F, T3010, T3020, T3030, T3040, T4.55, T4.55 - POWERSTAR, T4.65, T4.65 - POWERSTAR, T4.75, T4.75 - POWERSTAR, TD3.50, TI4.55, TI4.65, TI4.75 |
