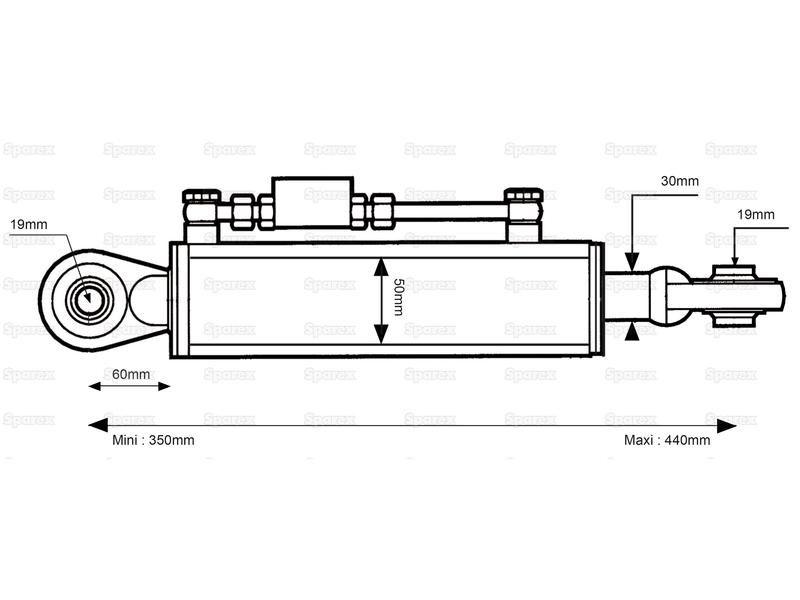

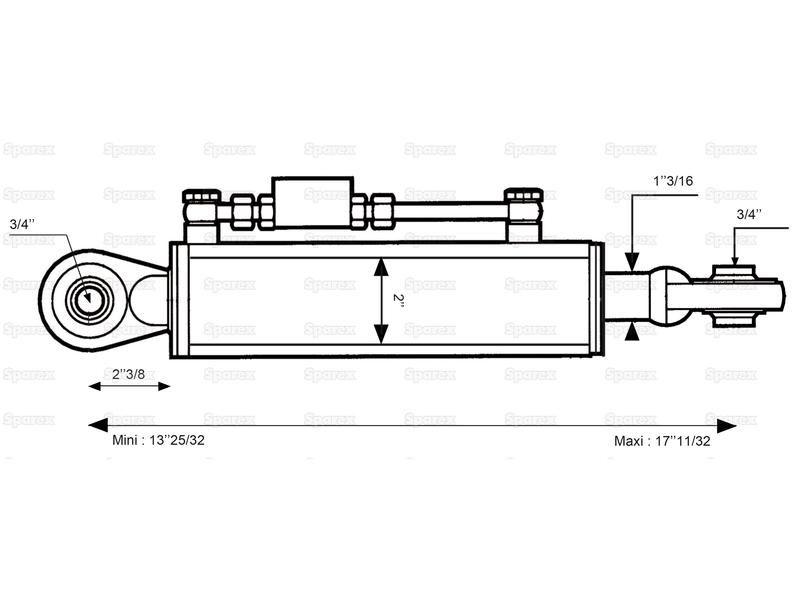

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 350mm.
Part Number: S.399231Categories: PTO (shaft), Linkage
Part Number: S.399231
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 350mm. Min. Length : 350mm, Max. Length : 440mm, Supplied with : Hose Set.
Technical Information
| A mm | 60 |
| Brand | Sparex |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Check Valve Position | Top |
| Cylinder Bore mm | 50 |
| Implement End | Ball |
| Lift kgs @180 bar | 2300 |
| Maximum Length mm | 440 |
| Minimum Length mm | 350 |
| Related Products | 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968 |
| Rod Ø mm | 30 |
| Suitable for Tractors up to hp kW | 60hp (45kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 3600 |
| Tractor End | Ball |
| Tractor End Fixing | Fixed |
