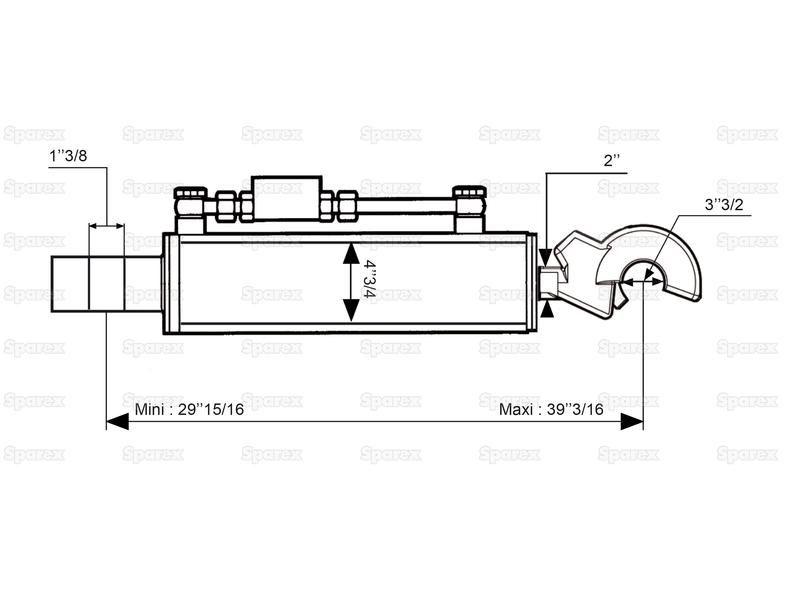

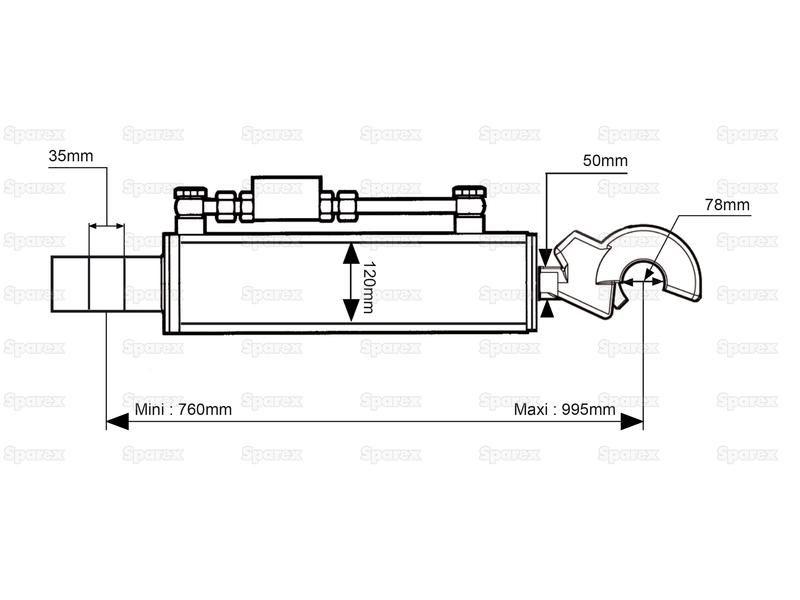

Hydraulic Top Link (Cat.-/4) and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm.
Part Number: S.119711Categories: PTO (shaft), Linkage
Part Number: S.119711
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.-/4) and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm. Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose set, chain & marker label without knuckle & pin.
Technical Information
| Brand | Sparex |
| Category | -/4 |
| Category Implement End | 4 |
| Cylinder Bore mm | 120 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 18600 |
| Maximum Length mm | 995 |
| Minimum Length mm | 760 |
| Related Products | 33137, 33144, 33158, 39965, 39966, 39967, 39968, 118459, 118460, 119704, 119705, 119706, 119707, 119708, 119709 |
| Rod Ø mm | 50 |
| Suitable for Tractors up to hp kW | 400hp (294kW) |
| Supplied with | Hose set, chain & marker label without knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 24600 |
