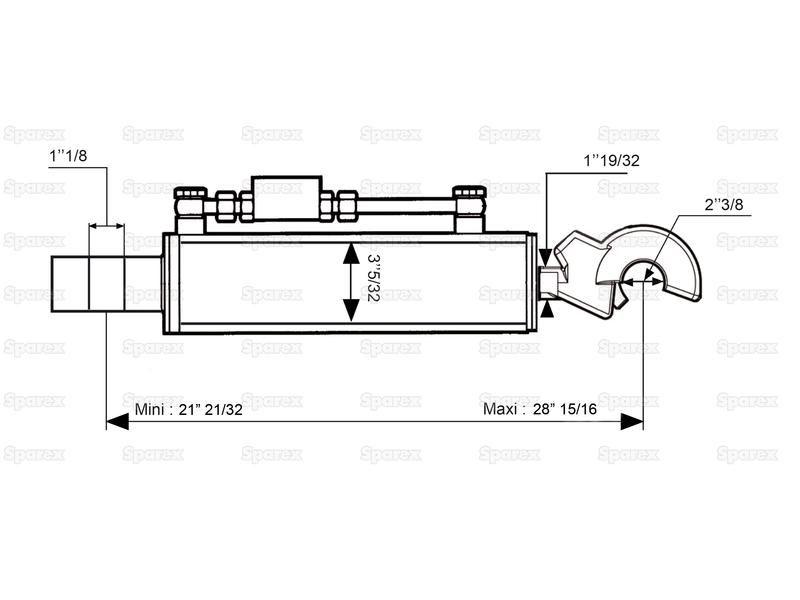

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 550mm.
Part Number: S.32930Categories: PTO (shaft), Linkage
Part Number: S.32930
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 550mm. Min. Length : 550mm, Max. Length : 735mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin.
Technical Information
| Brand | Sparex |
| Category | -/3 |
| Category Implement End | 3 |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 6930 |
| Maximum Length mm | 735 |
| Minimum Length mm | 550 |
| Related Products | 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label without knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
